ARKU

Categories

Coil Reel & Straightener

Object

42745

Brand

ARKU

Controls

SIEMENS S7 300

Object
42745

Contact Person:

ProdEq Deutschland GmbH

Thomas Berger

+49 2192 935 382
Overall Specifications (coil lines)
sheet width max:   350 mm
sheet thickness max:   10 mm
max. weight of coil:   3 to
feedstock transport direction:  left to right
Decoiler
design:  single reel
sheet width max:   350 mm
sheet width (min):   80 mm
max. weight of coil:   3 to
max. diameter of coil:   1500 mm
mandrel expansion range from:   470 mm
mandrel expansion range up to:   530 mm
Leveller Unit
sheet thickness max:   10 mm
number of leveller rolls:   5
diameter of leveller rolls:   100 mm
number of infeed-/outfeed rolls:   2
diameter of feed rolls:   100 mm
Electrical specifications
mains voltage:   400 V
mains frequency:   50 Hz

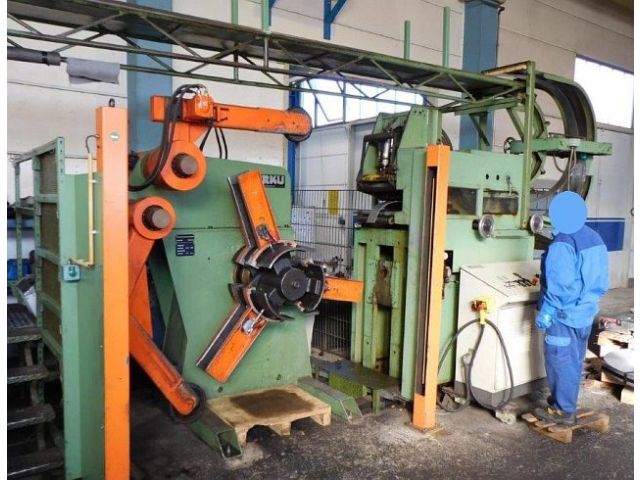

Line consisting of
+ uncoiler ARKU
+ straightener HMS

the equipment was used for band thickness up to 10.5 mm

Thomas Berger
