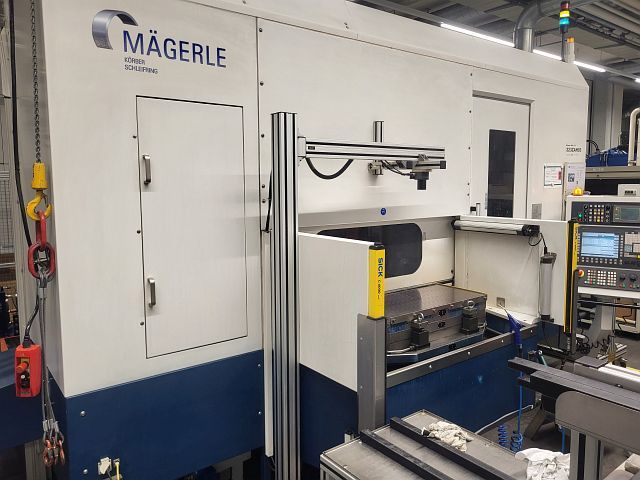

MÄGERLE MGC 210.50.45
Kategorija
Surface and Profile Grinder
Objekta
55904
Proizvođač
MÄGERLE
Model
MGC 210.50.45
God
2009
Kontrola
SIEMENS 840 D
Objekta
55904
| table (surface grinding) | ||
|---|---|---|
| table surface (left-right): | 1000 | mm |
| table surface (front-back): | 400 | mm |
| magnetic table: yes | ||
| Spindlestock Grinding Spindle | ||
|---|---|---|
| X-axis travel: | 2100 | mm |
| Y-axis travel: | 450 | mm |
| Z-axis travel: | 470 | mm |
| drive power: | 50 | kW |
| Grinding Tool | ||
|---|---|---|
| type of grinding tool: wheel | ||
| diameter (max): | 500 | mm |
| borehole: diameter: | 203.2 | mm |
| width: | 160 | mm |
| Electrical specifications | ||
|---|---|---|
| mains power supply: | 82 | kVA |
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 5700 | mm |
| space requirements -front/back-: | 4300 | mm |
| total height: | 2930 | mm |
| attachments (grinding) | ||
|---|---|---|
| balancing attachment: yes | ||
| coolant unit: yes | ||
| Machine in excellent condition, serviced annually by the manufacturer - Box-type construction with heavy ribbing - Hydrostatic X and Y guideways (vibration damping for superior surface finish) - Swivel table - Automatic balancing unit - Turning diameter Ø 1600 mm - Clamping surface 2 x 1000 x 440 mm - Pendulum operation ±180 degrees (non-lifting) - Knoll vacuum filter Knoll VL 650/4000 |
