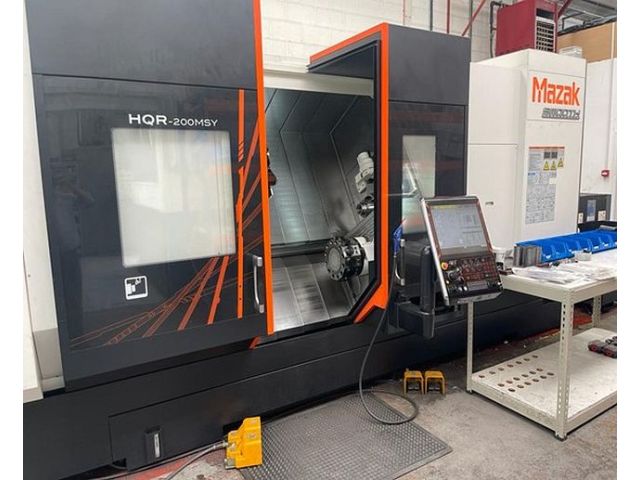

MAZAK HQR-200 MSY (1300U)
Kategorija
Turning and Milling Center
Objekta
51678
Proizvođač
MAZAK
Model
HQR-200 MSY (1300U)
God
2017
Kontrola
MAZAK SMOOTH G
Objekta
51678
| basic functions | ||
|---|---|---|
| number of spindles: | 2 | |
| number of turrets: | 2 | |
| live positions: yes | ||
| main spindle | ||
|---|---|---|
| spindle revolutions (max): | 45000 | /min |
| drive power: | 22 | kW |
| spindle bore diameter: | 65 | mm |
| spindle positioning: | 0.0001 | ° |
| c-axis: yes | ||
| counter spindle | ||
|---|---|---|
| spindle revolutions (max): | 5000 | /min |
| drive power: | 22 | kW |
| spindle positioning: | 0.0001 | ° |
| c-axis: yes | ||
| X/Z slide | ||
|---|---|---|
| Z-axis travel: | 1225 | mm |
| X-axis travel: | 207 | mm |
| Y-axis travel: | 100 | mm |
| distance spindle tool holder (max): | 344 | mm |
| number of tool positions (total): | 12 | |
| number of live positions: | 12 | |
| - rotation speeds (max): | 6000 | /min |
| X/Z slide | ||
|---|---|---|
| Z-axis travel: | 1280 | mm |
| X-axis travel: | 141 | mm |
| Y-axis travel: | 70 | mm |
| rotating range B-axis up to: | 0.0001 | ° |
| distance spindle tool holder (max): | 210 | mm |
| number of tool positions (total): | 12 | |
| number of live positions: | 12 | |
| - rotation speeds (max): | 6000 | /min |
| Accessories - 1 set of tool holders - 1 pc. 3-jaw chuck Kitagawa BB08 for main spindle - 1 pc. collet chuck Hainbuch 52mm, axfix - 1 piece bar loader, Hydrafeed Multifeed MX-1B |
| Accessories - 1 set of tool holders - 1 pc. 3-jaw chuck Kitagawa BB08 for main spindle - 1 pc. collet chuck Hainbuch 52mm, axfix - 1 piece bar loader, Hydrafeed Multifeed MX-1B |
