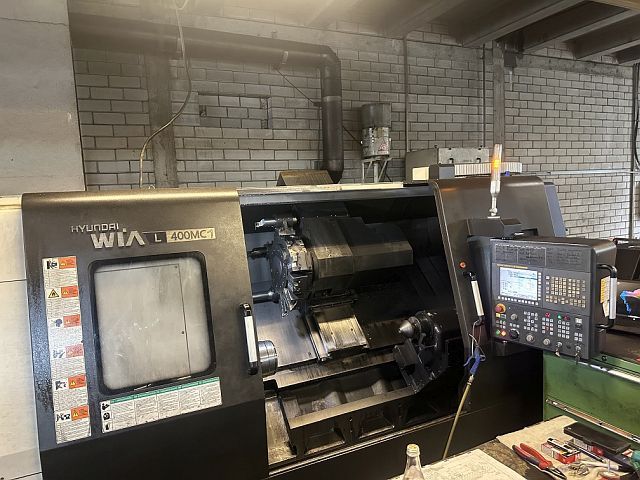

HYUNDAI WIA L 400 MC
Kategorija
CNC lathe
Objekta
55178
Proizvođač
HYUNDAI WIA
Model
L 400 MC
God
2018
Kontrola
FANUC 32I-MODEL B - MANUAL GUIDE I
Objekta
55178
| basic functions | ||
|---|---|---|
| number of spindles: | 1 | |
| number of turrets: | 1 | |
| live positions: yes | ||
| Working Range Turning | ||
|---|---|---|
| turning diameter (max): | 530 | mm |
| bar diameter (max): | 117 | mm |
| worpiece length max.: | 500 | mm |
| main spindle | ||
|---|---|---|
| spindle revolutions (max): | 2000 | /min |
| drive power: | 37 | kW |
| spindle torque: | 3073 | Nm |
| X/Z slide | ||
|---|---|---|
| number of tool positions (total): | 12 | |
| number of live positions: | 12 | |
| - rotation speeds (max): | 4000 | /min |
| - drive power: | 7.5 | kW |
| attachments (turning) | ||
|---|---|---|
| chip conveyor: yes | ||
| • Programmable tailstock MK#5 • Main spindle with 2-stage gearbox • Tooleye • Chip conveyor • High-pressure pump, 20 bar • 3-jaw chuck, diameter 380 mm • Tool breakage monitoring • Programme memory expansion • Programmable clamping pressure |
