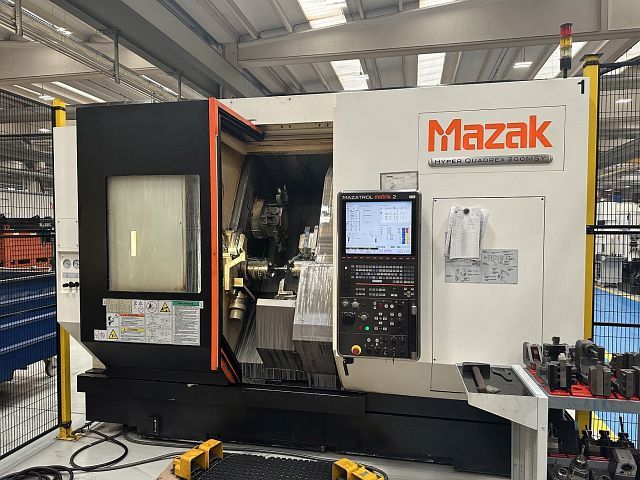

MAZAK HQR 200 MSY
Kategorija
Turning and Milling Center
Objekta
55188
Proizvođač
MAZAK
Model
HQR 200 MSY
God
2013
Kontrola
MAZATROL MATRIX 2
Objekta
55188
| basic functions | ||
|---|---|---|
| number of spindles: | 2 | |
| number of turrets: | 2 | |
| live positions: yes | ||
| Working Range Turning | ||
|---|---|---|
| swing diameter (max): | 370 | mm |
| turning diameter (max): | 344 | mm |
| main spindle | ||
|---|---|---|
| spindle revolutions (max): | 5000 | /min |
| drive power: | 22 | kW |
| counter spindle | ||
|---|---|---|
| spindle revolutions (max): | 5000 | /min |
| drive power: | 22 | kW |
| X/Z slide | ||
|---|---|---|
| Z-axis travel: | 760 | mm |
| X-axis travel: | 207 | mm |
| Y-axis travel: | 100 | mm |
| - rotation speeds (max): | 6000 | /min |
| X/Z slide | ||
|---|---|---|
| Z-axis travel: | 815 | mm |
| X-axis travel: | 141 | mm |
| Y-axis travel: | 70 | mm |
| attachments (turning) | ||
|---|---|---|
| chip conveyor: yes | ||
| European CE standards: yes | ||
| • Robot interface • Automatic door • Tool setter on the right and left • 2 pcs. 3-jaw chuck, SMW Autoblok 200 GSA shaft chuck • Machine available with other chucks on request • Chip conveyor, rear ejection • Separate coolant supply • 15 bar high-pressure pumps • Coolant temperature control |
| • Robot interface • Automatic door • Tool setter on the right and left • 2 pcs. 3-jaw chuck, SMW Autoblok 200 GSA shaft chuck • Machine available with other chucks on request • Chip conveyor, rear ejection • Separate coolant supply • 15 bar high-pressure pumps • Coolant temperature control |
