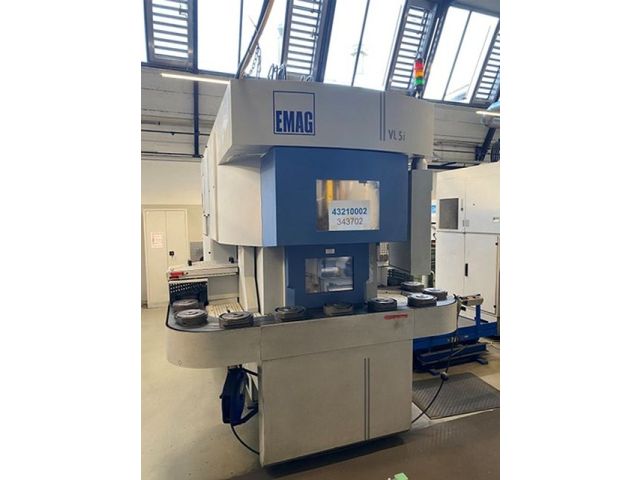

EMAG VL 5I
Kategorija
Vertical Lathe
Objekta
54956
Proizvođač
EMAG
Model
VL 5I
God
2011
Objekta
54956
| basic functions | ||
|---|---|---|
| number of spindles: | 1 | |
| number of turrets: | 1 | |
| live positions: yes | ||
| Working Range Turning | ||
|---|---|---|
| swing diameter (max): | 270 | mm |
| turning diameter (max): | 250 | mm |
| main spindle | ||
|---|---|---|
| spindle revolutions (max): | 6000 | /min |
| spindle torque S1 100%: | 14 | Nm |
| X/Z slide | ||
|---|---|---|
| Z-axis travel: | 300 | mm |
| X-axis travel: | 660 | mm |
| rapid traverse Z: | 30000 | mm/min |
| rapid traverse X: | 60000 | mm/min |
| tool fixture: Turret | ||
| number of tool positions (total): | 12 | |
| number of live positions: | 12 | |
| Tool magazine | ||
|---|---|---|
| number of positions: | 12 | |
| Electrical specifications | ||
|---|---|---|
| total power consumption: | 42 | kW |
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 3820 | mm |
| space requirements -front/back-: | 2040 | mm |
| total height: | 2400 | mm |
| attachments (turning) | ||
|---|---|---|
| chip conveyor: yes | ||
| coolant unit: yes | ||
| hydraulic system: yes | ||
| European CE standards: yes | ||
