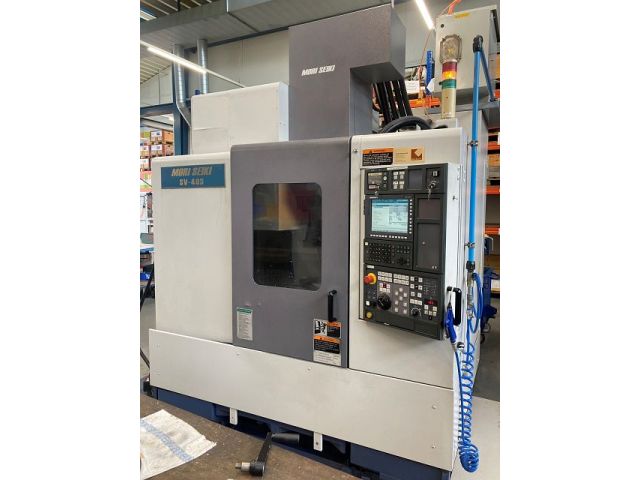

MORI SEIKI SV 403
Kategorija
Machining Center - Vert.
Objekta
53753
Proizvođač
MORI SEIKI
Model
SV 403
God
2001
Last Overhaul
2025
Kontrola
MORI SEIKI MSX 501 III
Objekta
53753
| Working Range -cubic- | ||
|---|---|---|
| number of processing axes (excl parallel axes): | 3 | |
| X-axis travel: | 600 | mm |
| Y-axis travel: | 430 | mm |
| Z-axis travel: | 460 | mm |
| Table | ||
|---|---|---|
| table surface (left-right): | 900 | mm |
| table surface (front-back): | 500 | mm |
| spindle / head | ||
|---|---|---|
| spindle revolutions (max): | 12000 | /min |
| tool fixture: ISO BT 40 | ||
| Tool magazine | ||
|---|---|---|
| magazin type: chain magazine | ||
| number of positions: | 30 | |
| tool diameter max.: | 125 | mm |
| tool weight max.: | 8 | kg |
| Electrical specifications | ||
|---|---|---|
| mains power supply: | 53 | kVA |
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| total weight approx.: | 6300 | kg |
| attachments | ||
|---|---|---|
| guideway covers: yes | ||
| central lubrication system: yes | ||
| chip conveyor: yes | ||
| coolant unit: yes | ||
| closed cabin: yes | ||
Machine in excellent condition - New control system installed in June 2025 - Manuals available - Includes 30 tool holders - less spindel hours (5000h) |
