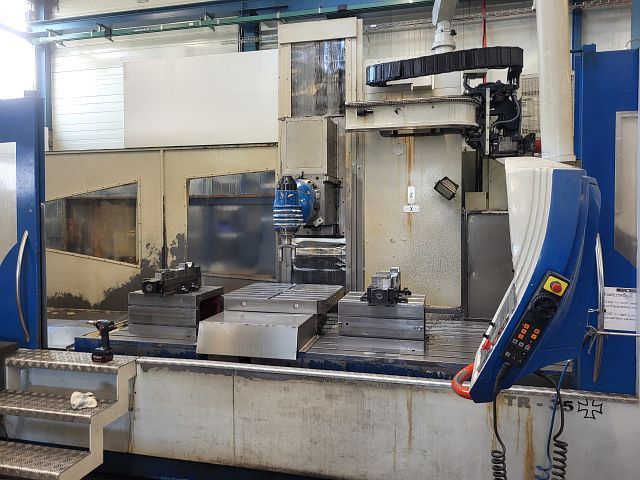

SORALUCE TR 35
Kategorija
Machining Center - Univ.
Objekta
53869
Proizvođač
SORALUCE
Model
TR 35
God
2003
Kontrola
HEIDENHAIN ITNC 530
Objekta
53869
| basic design | ||
|---|---|---|
| basic design: bed type | ||
| Working Range -cubic- | ||
|---|---|---|
| number of processing axes (excl parallel axes): | 5 | |
| .. among of them simultaneous CNC axes: | 3 | |
| X-axis travel: | 3500 | mm |
| Table | ||
|---|---|---|
| workpiece load (max): | 4000 | kg |
| - mode of operation: automatic | ||
| spindle / head | ||
|---|---|---|
| - positioning/indexing: | 2.5 | ° |
| - positioning/indexing: | 2.5 | ° |
| spindle revolutions (max): | 4000 | /min |
| tool fixture: ISO SK 50 | ||
| Axis drives | ||
|---|---|---|
| rapid traverse: | 20000 | mm/min |
| Tool magazine | ||
|---|---|---|
| magazin type: chain magazine | ||
| number of positions: | 30 | |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 13500 | mm |
| space requirements -front/back-: | 5000 | mm |
| total height: | 3850 | mm |
| total weight approx.: | 24000 | kg |
| attachments | ||
|---|---|---|
| angular milling head: yes | ||
| guideway covers: yes | ||
| chip conveyor: yes | ||
| inkl. all equipment |
| inkl. all equipment |
