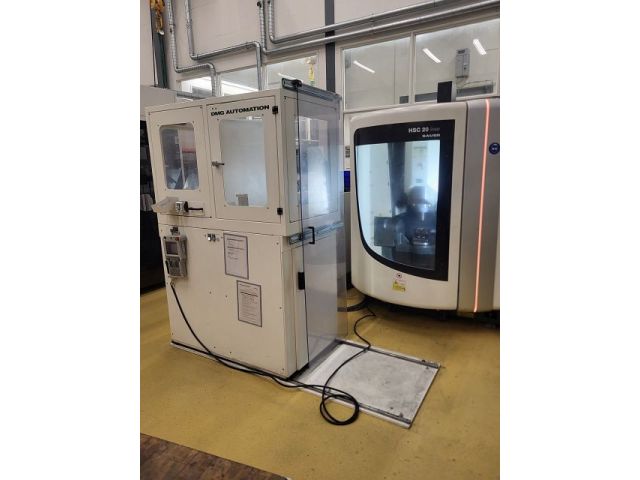

HSC 20 LINEAR SAUER
Kategorija
Machining Center - Univ. (APC)
Objekta
55887
Proizvođač
HSC 20 LINEAR SAUER
God
2009
Kontrola
HEIDENHAIN ITNC 530
Objekta
55887
| Working Range -cubic- | ||
|---|---|---|
| number of processing axes (excl parallel axes): | 5 | |
| X-axis travel: | 200 | mm |
| Y-axis travel: | 200 | mm |
| Z-axis travel: | 280 | mm |
| rotating range A-axis from: | -10 | ° |
| rotating range A-axis up to: | 130 | ° |
| rotating range C-axis from: | 0 | ° |
| rotating range C-axis up to: | 360 | ° |
| spindle / head | ||
|---|---|---|
| spindle revolutions (min): | 3000 | /min |
| spindle revolutions (max): | 42000 | /min |
| tool fixture: HSK E32 | ||
| Tool magazine | ||
|---|---|---|
| number of positions: | 60 | |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 2200 | mm |
| space requirements -front/back-: | 3700 | mm |
| total height: | 2400 | mm |
| Equipment: - Renishaw Laser System NC-4 III - 3D quick SET - Renishaw OMP-400 Infrared Probe - Coolant system - Automation with drawers - Through-spindle compressed air |
