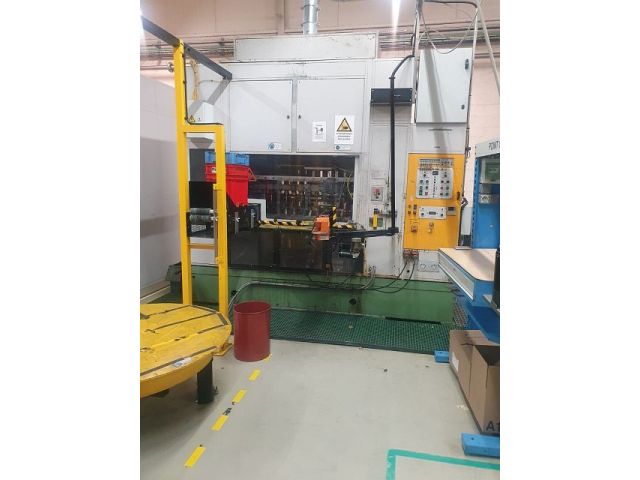

PLATARG 912
Kategorija
Transfer Press -mechanical-
Objekta
50350
Proizvođač
PLATARG
Model
912
God
1988
Objekta
50350
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 3400 | mm |
| space requirements -front/back-: | 1600 | mm |
| total height: | 3220 | mm |
| total weight approx.: | 15000 | kg |
| 1 station from 336º to 242º stroke 77 mm 2 station from 278º to 110º stroke 111 mm 3 station from 284º to 110º stroke 124 mm 4-12 station from 284º to 110º stroke 154 mm Shell height max 154/2 = 77 mm Ejector stroke max 90 mm Blockheight is 90 mm |
| 1 station from 336º to 242º stroke 77 mm 2 station from 278º to 110º stroke 111 mm 3 station from 284º to 110º stroke 124 mm 4-12 station from 284º to 110º stroke 154 mm Shell height max 154/2 = 77 mm Ejector stroke max 90 mm Blockheight is 90 mm |
