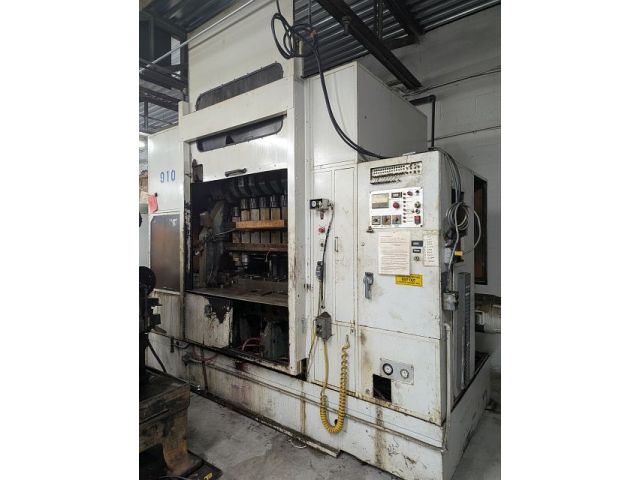

PLATARG 3009

Tehničke specifikacije

Press forces
total force (nominal):	180	to

Slide
stroke:	133.35	mm

slide (mechan. Press)
variable speed: yes
stroke rate (min.):	25	/min
stroke rate (max.):	75	/min

Electrical specifications
total power consumption:	12	kW
mains voltage:	480	V
mains frequency:	60	Hz

Dimensions / weights
space requirements -left/right-:	3658	mm
space requirements -front/back-:	1524	mm
total height:	2743	mm
total weight approx.:	21319	kg

The machine is in good condition and in running condition.
As it can be see from the pictures, the machine comes complete with slide, cams, Nitrogen cylinders and pistons that can be adjusted from 200 PSI to 2,000 PSI,
Built in Die Protection / Probe System and auto lubricating system with auto shutoff if oil pressure drops.
The machine is a 3009 Platarg with 30 tons of working pressure per station.
Total tonnage 180 tons
No of stations 9
Max load on any one station 30 tons
Ram stroke 5 1/4"
Max shell height 2"
Std ram pitch 6"
Shut height adjustment 3/4"
Max blank size 5 1/2" x 5 1/2"
Die block size 16 1/4" x 6" x 3 3/4"
Width of feed rolls 8"
Motor 15 HP.
Gear Ratio 10:1
Variable speed ratio: 3:1

Opis

The machine is in good condition and in running condition.
As it can be see from the pictures, the machine comes complete with slide, cams, Nitrogen cylinders and pistons that can be adjusted from 200 PSI to 2,000 PSI,
Built in Die Protection / Probe System and auto lubricating system with auto shutoff if oil pressure drops.
The machine is a 3009 Platarg with 30 tons of working pressure per station.
Total tonnage 180 tons
No of stations 9
Max load on any one station 30 tons
Ram stroke 5 1/4"
Max shell height 2"
Std ram pitch 6"
Shut height adjustment 3/4"
Max blank size 5 1/2" x 5 1/2"
Die block size 16 1/4" x 6" x 3 3/4"
Width of feed rolls 8"
Motor 15 HP.
Gear Ratio 10:1
Variable speed ratio: 3:1
