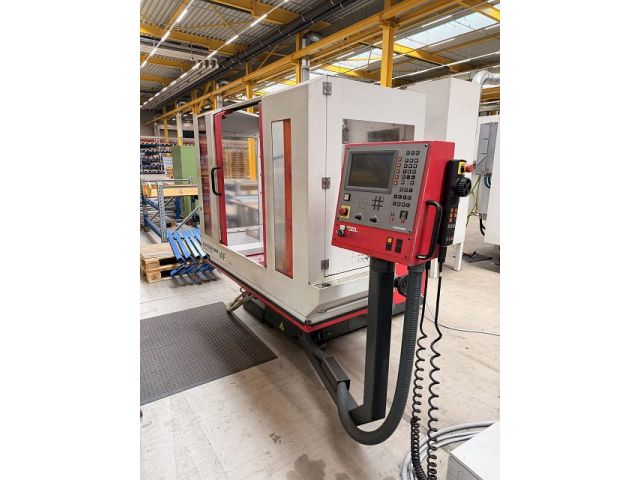

KUNZMANN WF 600 M
Kategorija
glodalica - univerzalna
Objekta
57356
Proizvođač
KUNZMANN
Model
WF 600 M
God
2011
Kontrola
HEIDENHAIN TNC 124
Objekta
57356
| Working Range -cubic- | ||
|---|---|---|
| X-axis travel: | 600 | mm |
| Y-axis travel: | 400 | mm |
| Z-axis travel: | 400 | mm |
| Table | ||
|---|---|---|
| table surface (left-right): | 800 | mm |
| table surface (front-back): | 425 | mm |
| workpiece load (max): | 250 | kg |
| spindle / head | ||
|---|---|---|
| spindle revolutions (max): | 4500 | /min |
| tool fixture: ISO SK 40 | ||
| snaga motora: | 7.5 | kW |
| Electrical specifications | ||
|---|---|---|
| mains power supply: | 13 | kVA |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 2720 | mm |
| space requirements -front/back-: | 1850 | mm |
| total height: | 2300 | mm |
| total weight approx.: | 2025 | kg |
| ca 2000 h |
| ca 2000 h |
