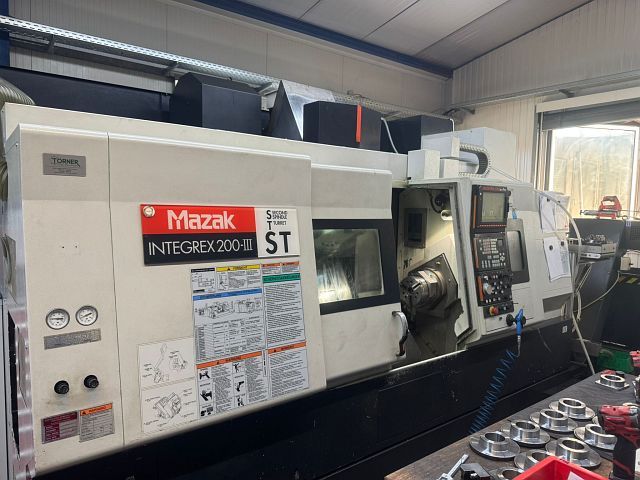

MAZAK INTEGREX 200-IIIST
Kategorija
Turning and Milling Center
Objekta
55179
Proizvođač
MAZAK
Model
INTEGREX 200-IIIST
God
2005
Kontrola
MAZATROL 640 MT PRO
Objekta
55179
| basic functions | ||
|---|---|---|
| number of spindles: | 2 | |
| live positions: yes | ||
| Working Range Turning | ||
|---|---|---|
| turning diameter (max): | 660 | mm |
| worpiece length max.: | 1045 | mm |
| main spindle | ||
|---|---|---|
| spindle revolutions (max): | 4600 | /min |
| drive power: | 22 | kW |
| c-axis: yes | ||
| counter spindle | ||
|---|---|---|
| spindle revolutions (max): | 5000 | /min |
| drive power: | 18.5 | kW |
| c-axis: yes | ||
| X/Z slide | ||
|---|---|---|
| rapid traverse Z: | 50000 | mm/min |
| rapid traverse X: | 50000 | mm/min |
| rapid traverse Y: | 40000 | mm/min |
| - rotation speeds (max): | 12000 | /min |
| - drive power: | 18.5 | kW |
| Tool magazine | ||
|---|---|---|
| number of positions: | 40 | |
| tool diameter max.: | 90 | mm |
| - with free neighbour positions: | 125 | mm |
| tool length max.: | 300 | mm |
| tool weight max.: | 10 | kg |
| X1 axis: 580 mm X2 axis: 150 mm Y axis: 160 mm Z1 axis: 1,045 mm Z2 axis: 1,010 mm W axis: 1,050 mm B axis: -30 to 210° Special equipment • Chip conveyor • Tooleye • 15 bar high-pressure pump • Milling spindle synchronised thread cutting • 5-axis simultaneous machining • Preparation for multiple and flash tool holders • Interface for bar loader • Conveyor belt for finished parts • Preparation for Renishaw system • 3-jaw chuck for main and counter spindle |
