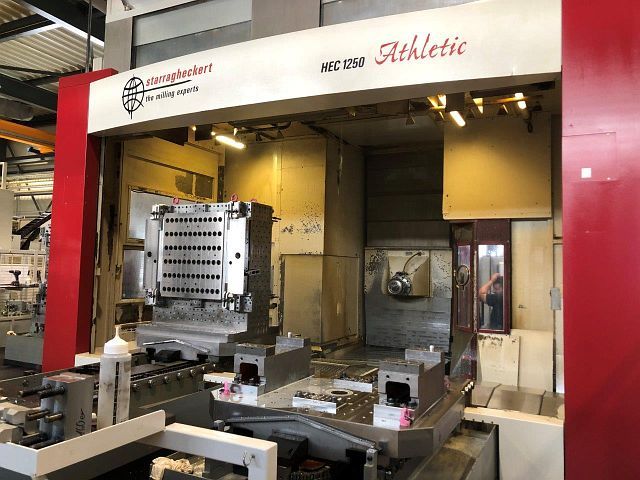

STARRAG HECKERT HEC 1250 ATHLETIC
Kategorija
Machining Center - Horiz. (APC)
Objekta
54434
Proizvođač
STARRAG HECKERT
Model
HEC 1250 ATHLETIC
God
2011
Kontrola
SIEMENS 840 D
Objekta
54434
| Working Range -cubic- | ||
|---|---|---|
| number of processing axes (excl parallel axes): | 4 | |
| .. among of them simultaneous CNC axes: | 3 | |
| X-axis travel: | 2200 | mm |
| Y-axis travel: | 1600 | mm |
| Z-axis travel: | 1850 | mm |
| rotating range B-axis from: | 0 | ° |
| rotating range B-axis up to: | 360 | ° |
| Table | ||
|---|---|---|
| table surface (left-right): | 1000 | mm |
| table surface (front-back): | 1250 | mm |
| workpiece load (max): | 5000 | kg |
| spindle / head | ||
|---|---|---|
| spindle revolutions (min): | 20 | /min |
| spindle revolutions (max): | 10000 | /min |
| Axis drives | ||
|---|---|---|
| rapid traverse: | 40000 | mm/min |
| Tool magazine | ||
|---|---|---|
| number of positions: | 60 | |
| tool diameter max.: | 110 | mm |
| - with free neighbour positions: | 250 | mm |
| tool length max.: | 450 | mm |
| tool weight max.: | 35 | kg |
| automatic workload equipment | ||
|---|---|---|
| number of store positions: | 2 | |
| Electrical specifications | ||
|---|---|---|
| mains power supply: | 130 | kVA |
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 10000 | mm |
| space requirements -front/back-: | 8500 | mm |
| total height: | 4100 | mm |
| total weight approx.: | 42000 | kg |
| attachments | ||
|---|---|---|
| tool breakage detector: yes | ||
| chip conveyor: yes | ||
| coolant unit: yes | ||
| band filtration unit: yes | ||
| closed cabin: yes | ||
| European CE standards: yes | ||
| Equipment: - 3 clamping tables - Renishaw touch probe - Laser tool breakage detection - ARTIS tool and process monitoring - 4-color indicator light - 2 chip conveyors Spindle operating hours: 28,500 / 5,700 |
| Equipment: - 3 clamping tables - Renishaw touch probe - Laser tool breakage detection - ARTIS tool and process monitoring - 4-color indicator light - 2 chip conveyors Spindle operating hours: 28,500 / 5,700 |
