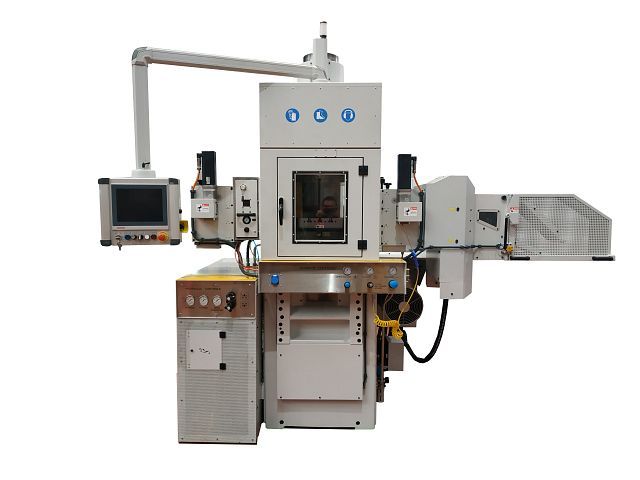

FEINTOOL GKP 160
Kategori
Hassas kesme presi -mekanik-
Nesne
38887
Marka
FEINTOOL
Model
GKP 160
Last Overhaul
2023
Kontrol
BECKHOFF
Nesne
38887
| PRES-KONSTRÜKSİYON | ||
|---|---|---|
| drive system: knuckle-joint | ||
| Ana Piston | ||
|---|---|---|
| Toplam-nominal güç: | 160 | to |
| Strok (kurs): | 60 | mm |
| Vuruş sayısı maksimum: | 70 | /min |
| Karşılık Tutucu | ||
|---|---|---|
| Güç: | 40 | to |
| Strok (kurs): | 14 | mm |
| V-Ring | ||
|---|---|---|
| Güç: | 50 | to |
| Strok (kurs): | 10 | mm |
| Kalıp Bağlama Alanı | ||
|---|---|---|
| Alt Bağlama Alanı - Genişliği: | 480 | mm |
| Alt Bağlama Alanı - Derinliği: | 520 | mm |
| Yukarı Bağlama Alanı - Yüksekliği: | 480 | mm |
| Yukarı Bağlama Alanı - Derinliği: | 520 | mm |
| Bağlama yüksekliği maks.: | 314 | mm |
| Koç Ayarı: | 80 | mm |
| distance between columns (H-frame): | 500 | mm |
| Pencere Açıklığı (Genişlik): | 220 | mm |
| İlerleme Ünitesi | ||
|---|---|---|
| feeder type: roll feeder | ||
| Saç Genişliği maks.: | 210 | mm |
| Saç Kalınlığı maks.: | 6 | mm |
| (İlerleme (maks.): | 999.9 | mm |
| Şerit Boyu (min.): | 2000 | mm |
| pilot release system: evet | ||
| band lubrication system: evet | ||
| Complete refurbished fineblanking press: * disassembly into individual parts * findings of all components (crack test) * overhaul of the drive * overhaul of the guides * overhaul of the impression cylinders * overhaul of the clamping tables * new hydraulic unit * new pneumatics With modernization: * servo feeders * central lubrication * new brake/clutch unit * PC control BECKHOFF with touch display * safety control unit PILZ * CE conformity + overhaul is offered including machine provided by ProdEq. + optional customer requests can be integrated + pictures show a reference machine (work picture) -> If you are interested or have any questions on our services, please do not hesitate to contact us! |
