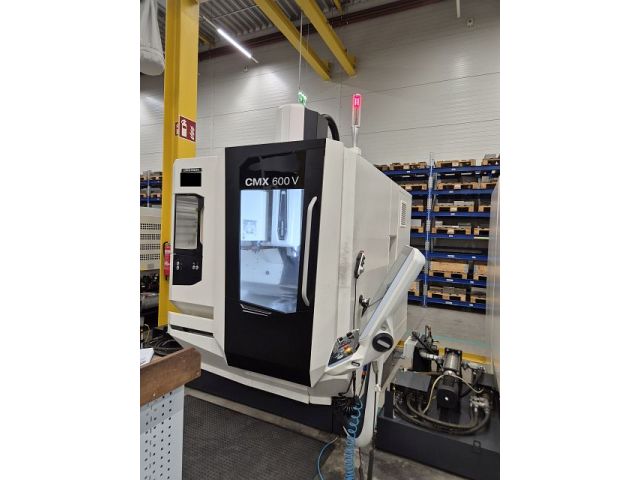

DMG CMX 600 V
Kategori
İşleme merkezi - dikey
Nesne
55699
Marka
DMG
Model
CMX 600 V
İmalat
2018
Kontrol
SIEMENS SOLUTION LINE
Nesne
55699
| Çalışma Alanı -kübik- | ||
|---|---|---|
| Işleme ekseni sayısı (paralel eksenler hariç): | 3 | |
| Hareket x-eksen: | 600 | mm |
| Hareket y-eksen: | 560 | mm |
| Z-axis travel: | 510 | mm |
| Tabla | ||
|---|---|---|
| Bağlama alanının genişliği (sol – sağ): | 900 | mm |
| Bağlama alanının genişliği (ön – arka): | 560 | mm |
| Parça Ağırlığı maks.: | 600 | kg |
| Mili / Başlık | ||
|---|---|---|
| Devir max.: | 20 | /min |
| Devir min.: | 12000 | /min |
| Takım Tutucu : ISO SK 40 | ||
| motor gücü S6 40%: | 13 | kW |
| motor gücü S1 100%: | 9 | kW |
| iş mili torku S6 40%: | 82 | Nm |
| iş mili torku S1 100%: | 54 | Nm |
| Eksen Hareketi | ||
|---|---|---|
| İlerleme x maks.: | 20000 | mm/min |
| İlerleme y maks.: | 20000 | mm/min |
| İlerleme z maks.: | 20000 | mm/min |
| Seri Hareketi x: | 30000 | mm/min |
| Seri Hareketi y: | 30000 | mm/min |
| Seri Hareketi z: | 30000 | mm/min |
| Takım Magazin | ||
|---|---|---|
| Adet Takım Pozisyonları: | 30 | |
| Takım Çapı maks.: | 80 | mm |
| boş Yan Pozisyon: | 125 | mm |
| Takım Uzunluğu maks.: | 300 | mm |
| Kalıp Ağırlığı maks.: | 8 | kg |
| EBATLAR / AĞIRLIK | ||
|---|---|---|
| Kullanma Alanı Uzunluk: | 2757 | mm |
| Kullanma Alanı Genişlik: | 1864 | mm |
| Komple Yüksekliği: | 2935 | mm |
| Toplam ağırlık yaklaşık: | 5000 | kg |
| Aksesuvar Delme / Frezeleme | ||
|---|---|---|
| Talaş Konveyer: evet | ||
| Soğutma Tertibatı: evet | ||
| through spindle coolant attachment: evet | ||
| Çalışma Odası- Komple Kabin: evet | ||
| European CE standards: evet | ||
| The machine has 10,700 operating hours and 1,600 spindle hours, of which approximately 1,000 hours were warm-up time. The vise can be purchased separately for an additional charge. The machine is equipped with its own cooling system, but is currently connected to a central cooling unit. To use the built-in cooling system, a pump would need to be retrofitted. A parts list for the required components can be provided. Overall, the machine is in like-new condition. |
