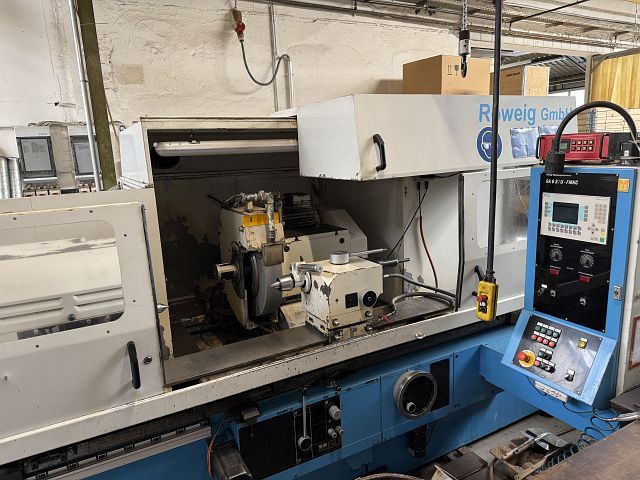

ROWEIG SA6 S/U - FMNC
Kategorije
Stroj za okroglo brušenje - zunanji
Objekt
54093
Proizvajalec
ROWEIG
Model
SA6 S/U - FMNC
Leto
2002
Objekt
54093
| Working Range Cylindrical Grinding | ||
|---|---|---|
| swing diameter (max): | 515 | mm |
| workpiece weight between centers (max): | 500 | kg |
| workpiece weight flying (max): | 120 | kg |
| Working Range External Grinding | ||
|---|---|---|
| grinding diameter (max): | 515 | mm |
| grinding length: | 1500 | mm |
| Table -cylindrical grinding- | ||
|---|---|---|
| tilting range (B-direction) min: | 8.3 | ° |
| rotating range B-axis up to: | -4 | ° |
| longitudinal travel: | 1680 | mm |
| Workpiece Spindlestock | ||
|---|---|---|
| spindle revolutions (min): | 14 | /min |
| spindle revolutions (max): | 114 | /min |
| number of gears: | 2 | |
| moĊ motorja: | 1.5 | kW |
| tool fixture: MK 6 | ||
| tailstock | ||
|---|---|---|
| sleeve stroke: | 40 | mm |
| taper: MK 5 | ||
| Spindlestock Grinding Spindle | ||
|---|---|---|
| tilting range (B-direction) min: | -10 | ° |
| rotating range B-axis up to: | 10 | ° |
| moĊ motorja: | 15 | kW |
| Grinding Tool | ||
|---|---|---|
| type of grinding tool: wheel | ||
| diameter (max): | 630 | mm |
| borehole: diameter: | 203.2 | mm |
| width: | 125 | mm |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 5150 | mm |
| space requirements -front/back-: | 3700 | mm |
| total height: | 2200 | mm |
| total weight approx.: | 6500 | kg |
| attachments (grinding) | ||
|---|---|---|
| self-centering chuck: | 1 | |
| coolant unit: yes | ||
