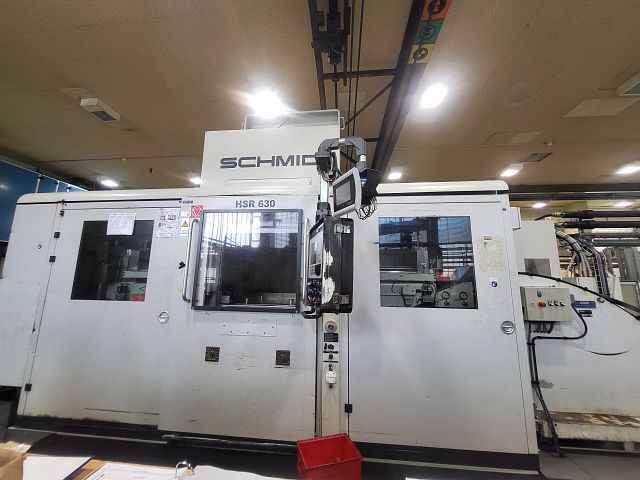

SCHMID HSR630
Kategorije
Finorezna stiskalnica - hidravliĊna
Objekt
57171
Proizvajalec
SCHMID
Model
HSR630
Leto
2001
Objekt
57171
| Press Design | ||
|---|---|---|
| quick die change system: yes | ||
| Slide | ||
|---|---|---|
| total force (nominal): | 630 | to |
| stroke: | 125 | mm |
| V-Ring | ||
|---|---|---|
| nominal force: | 320 | to |
| Tool Dimensions | ||
|---|---|---|
| lower table (left-right): | 800 | mm |
| lower table (front-back): | 800 | mm |
| shut height max.: | 420 | mm |
| Strip-Feeder | ||
|---|---|---|
| band lubrication system: yes | ||
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 6800 | mm |
| space requirements -front/back-: | 3300 | mm |
| total height: | 3730 | mm |
| height above floor level: | 3005 | mm |
| height under floor level: | 725 | mm |
| total weight approx.: | 26000 | kg |
| Attachments -Fineblanking Press- | ||
|---|---|---|
| autom. tool clamping device: yes | ||
| light barrier: yes | ||
| decoiler: yes | ||
| leveller unit: yes | ||
| Strip levelling machine SCHMID HR12H (YoM 1995) |
| Strip levelling machine SCHMID HR12H (YoM 1995) |
