KOHLER
Kategorije
Stroj za odvijanje in ravnanje traku
Objekt
51786
Proizvajalec
KOHLER
Leto
1990
Upravljanje
SIEMENS S7
Objekt
51786
| Overall Specifications (coil lines) | ||
|---|---|---|
| Sirina traku maks.: | 260 | mm |
| sheet thickness max.: | 6.5 | mm |
| coil weight max.: | 3 | to |
| feed velocity max.: | 20 | m/min |
| feedstock transport direction: right to left | ||
| Coil Chair | ||
|---|---|---|
| coil weight max.: | 3 | to |
| Decoiler | ||
|---|---|---|
| design: single reel, traversable | ||
| Sirina traku maks.: | 260 | mm |
| coil weight max.: | 3 | to |
| mandrel expansion range from: | 460 | mm |
| mandrel expansion range up to: | 530 | mm |
| Leveller Unit | ||
|---|---|---|
| sheet thickness max.: | 6.5 | mm |
| material cross section max. (450 N/mm2): | 1500 | mm² |
| number of leveller rolls: | 21 | |
| diameter of leveller rolls: | 50 | mm |
| loop controls: yes | ||

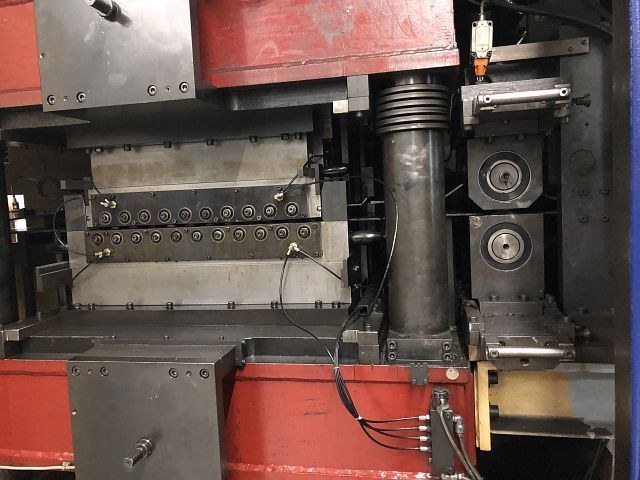

| decoiler KOHLER, type 3000.1 with coil-chair
straightening machine KOHLER, type KRM 50.260/2 transfer bridge 6970 mm, hydraulic operated |
