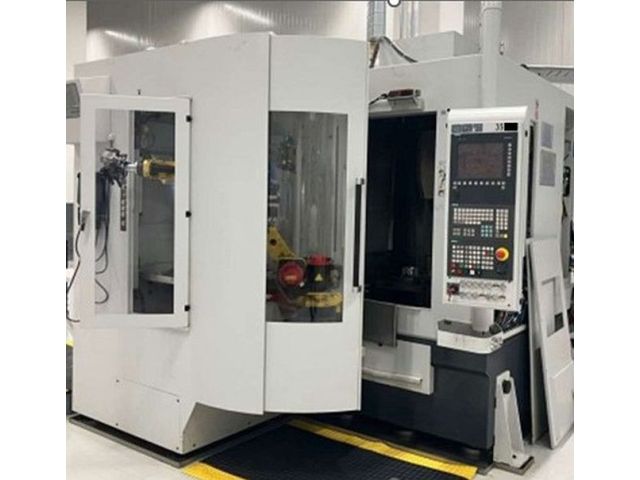

CHIRON DZ 08 P+
Kategorije
Obdelovani center - vertikalni (APC)
Objekt
51477
Proizvajalec
CHIRON
Model
DZ 08 P+
Leto
2023
Upravljanje
SIEMENS 840D SL 4.8
Objekt
51477
| Working Range -cubic- | ||
|---|---|---|
| number of processing axes (excl parallel axes): | 4 | |
| X-axis travel: | 210 | mm |
| Y-axis travel: | 270 | mm |
| Z-axis travel: | 360 | mm |
| spindle / head | ||
|---|---|---|
| spindle revolutions (max): | 40000 | /min |
| tool fixture: HSK A40 | ||
| Tool magazine | ||
|---|---|---|
| number of positions: | 72 | |
| automatic workload equipment | ||
|---|---|---|
| workpiece manipulator: articulated robot | ||
| number of store positions: | 36 | |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 8500 | mm |
| space requirements -front/back-: | 2500 | mm |
| total weight approx.: | 6000 | kg |
| attachments | ||
|---|---|---|
| central lubrication system: yes | ||
| chip conveyor: yes | ||
| coolant unit: yes | ||
| through spindle coolant attachment: yes | ||
| European CE standards: yes | ||
| -Siemens tool management with retooling -Fanuc Automation Robot M-10IA -Operating hours: 7,200 h - of which spindle 1 original, spindle 2: 3896 h |
