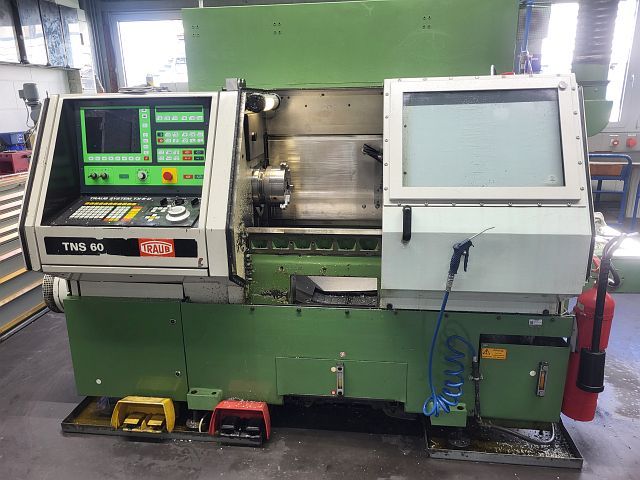

TRAUB TNS 60
Kategorije
CNC stružnica
Objekt
55606
Proizvajalec
TRAUB
Model
TNS 60
Leto
1986
Upravljanje
TRAUB TX 8
Objekt
55606
| basic functions | ||
|---|---|---|
| number of spindles: | 1 | |
| number of x/z slides: | 1 | |
| number of turrets: | 1 | |
| live positions: yes | ||
| number of c-axes: | 1 | |
| Working Range Turning | ||
|---|---|---|
| swing diameter (max): | 450 | mm |
| turning diameter (max): | 350 | mm |
| bar diameter (max): | 60 | mm |
| worpiece length max.: | 490 | mm |
| main spindle | ||
|---|---|---|
| spindle revolutions (max): | 4000 | /min |
| c-axis: yes | ||
| Tool magazine | ||
|---|---|---|
| number of positions: | 12 | |
| Electrical specifications | ||
|---|---|---|
| total power consumption: | 39 | kW |
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 3150 | mm |
| space requirements -front/back-: | 2100 | mm |
| total height: | 2100 | mm |
| total weight approx.: | 4000 | kg |
| attachments (turning) | ||
|---|---|---|
| tailstock: yes | ||
| - Machine in excellent condition Features: - Complete tool holders (very comprehensive) - Includes driven tool holders - Documentation |
