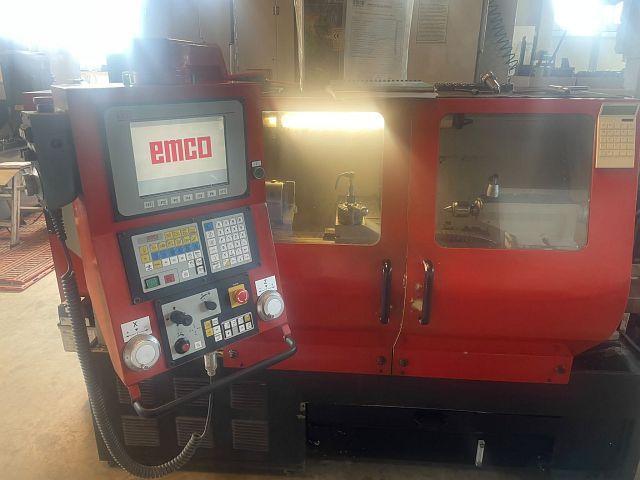

EMCO EMCOMAT 200X1000
Kategorije
Stružnica - cikliĊna
Objekt
57156
Proizvajalec
EMCO
Model
EMCOMAT 200X1000
Leto
2001
Upravljanje
FAGOR 8050
Objekt
57156
| basic functions | ||
|---|---|---|
| number of spindles: | 1 | |
| Working Range Turning | ||
|---|---|---|
| swing diameter (max): | 400 | mm |
| turning diameter (max): | 210 | mm |
| worpiece length max.: | 1000 | mm |
| main spindle | ||
|---|---|---|
| spindle revolutions (min): | 0 | /min |
| spindle revolutions (max): | 3000 | /min |
| spindle bore diameter: | 51.6 | mm |
| tailstock | ||
|---|---|---|
| distance betw. centers (max): | 1000 | mm |
| sleeve stroke: | 145 | mm |
| sleeve diameter: | 52 | mm |
| taper: MK 4 | ||
| Electrical specifications | ||
|---|---|---|
| total power consumption: | 11 | kW |
| mains power supply: | 16 | kVA |
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 2700 | mm |
| space requirements -front/back-: | 1900 | mm |
| total height: | 1700 | mm |
| total weight approx.: | 1800 | kg |
| attachments (turning) | ||
|---|---|---|
| tailstock: yes | ||
| European CE standards: yes | ||
| Features: - 3-jaw chuck SMW Ø210 - various jaws - tool holder |
| Features: - 3-jaw chuck SMW Ø210 - various jaws - tool holder |
