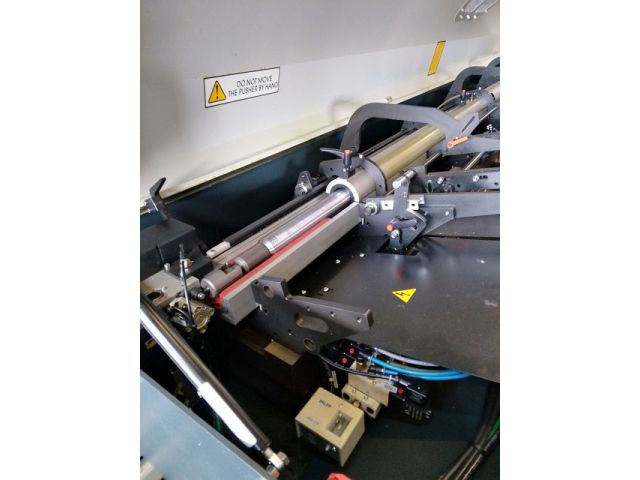

LNS ALPHA 552
Categories
bar loader
Object
43843
Brand
LNS
Model
ALPHA 552
YoM
2014
Object
43843
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 4200 | mm |
| space requirements -front/back-: | 800 | mm |
| total height: | 1400 | mm |
| total weight approx.: | 1100 | kg |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Facility in good to very good condition Technical data: - Diameter Ø 5 - 52 mm - Max. bar length 3200 mm Rod diameter (shells and rod included): 10/16/25/32/45 mm Rod diameter (only rod and parts of shells included): 40 mm Rod diameter (only parts of shells included): 30 mm |
