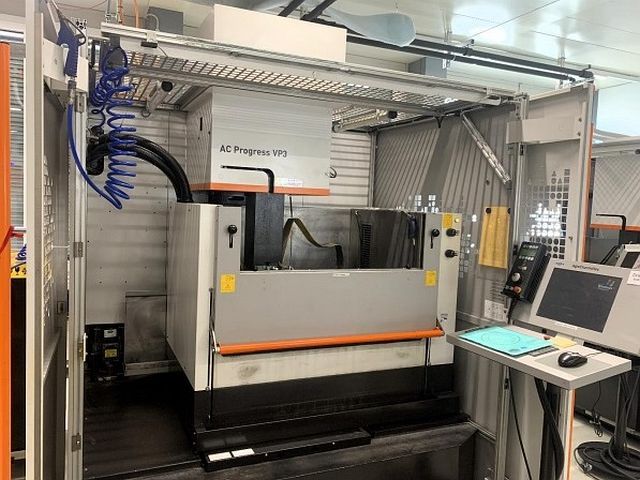

AGIE CHARMILLES PROGRESS VP3
Categories
Wire EDM
Object
52032
Brand
AGIE CHARMILLES
Model
PROGRESS VP3
YoM
2013
Object
52032
| working range -wire cutting- | ||
|---|---|---|
| worpiece length max.: | 1050 | mm |
| worpiece width (max): | 650 | mm |
| workpiece height (max): | 420 | mm |
| X-axis travel: | 500 | mm |
| Y-axis travel: | 350 | mm |
| z-axis travel (vertical): | 425 | mm |
| Table | ||
|---|---|---|
| workpiece load (max): | 400 | kg |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 4500 | mm |
| space requirements -front/back-: | 3000 | mm |
| total weight approx.: | 5650 | kg |
