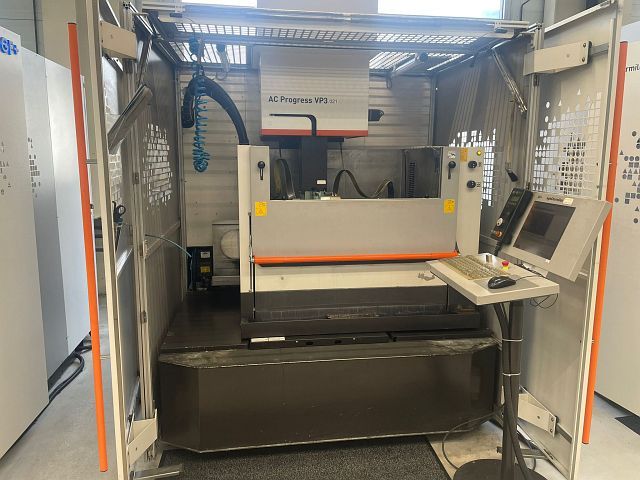

AGIE CHARMILLES PROGRESS VP3
Categories
Wire EDM
Object
56694
Brand
AGIE CHARMILLES
Model
PROGRESS VP3
YoM
2012
Object
56694
| working range -wire cutting- | ||
|---|---|---|
| worpiece length max.: | 1050 | mm |
| worpiece width (max): | 650 | mm |
| workpiece height (max): | 420 | mm |
| X-axis travel: | 500 | mm |
| Y-axis travel: | 350 | mm |
| z-axis travel (vertical): | 426 | mm |
| conical operation for max.: | 30 | ° |
| U-axis travel: | 140 | mm |
| V-axis travel: | 140 | mm |
| wire system | ||
|---|---|---|
| wire diameter (min): | 0.15 | mm |
| wire diameter (max): | 0.33 | mm |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 1940 | mm |
| space requirements -front/back-: | 2300 | mm |
| total height: | 2600 | mm |
| total weight approx.: | 4200 | kg |
| Features: Automatic wire threading and rethreading Water bath machine (fully immersed processing possible) AGIE Jogger hand box (operating unit) Travel: Up/Down ±70 mm |
