AGIE CHARMILLES CUT 3000 X
Categories
Wire EDM
Object
57475
Brand
AGIE CHARMILLES
Model
CUT 3000 X
YoM
2021
Object
57475
| working range -wire cutting- | ||
|---|---|---|
| worpiece length max.: | 1050 | mm |
| worpiece width (max): | 650 | mm |
| workpiece height (max): | 250 | mm |
| X-axis travel: | 550 | mm |
| Y-axis travel: | 350 | mm |
| z-axis travel (vertical): | 256 | mm |
| U-axis travel: | 140 | mm |
| V-axis travel: | 140 | mm |
| Table | ||
|---|---|---|
| workpiece load (max): | 400 | kg |
| Axis drives | ||
|---|---|---|
| rapid traverse X: | 3000 | mm/min |
| rapid traverse Y: | 3000 | mm/min |
| wire system | ||
|---|---|---|
| wire diameter (min): | 0.1 | mm |
| wire diameter (max): | 0.3 | mm |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 2685 | mm |
| space requirements -front/back-: | 2115 | mm |
| total height: | 2247 | mm |
| total weight approx.: | 4500 | kg |

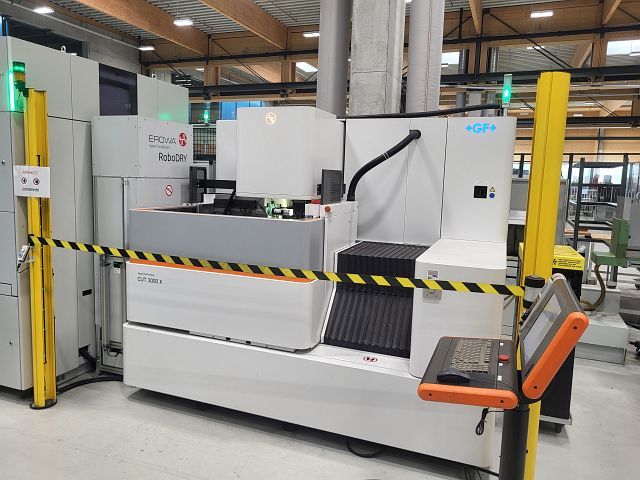

| Machine in excellent condition X = High-precision version Two CUT 3000X machines are for sale. Both machines are loaded by a centrally located Erowa robot. UV ± 70 mm Price per machine (without Erowa loading unit) Available upon request. |
