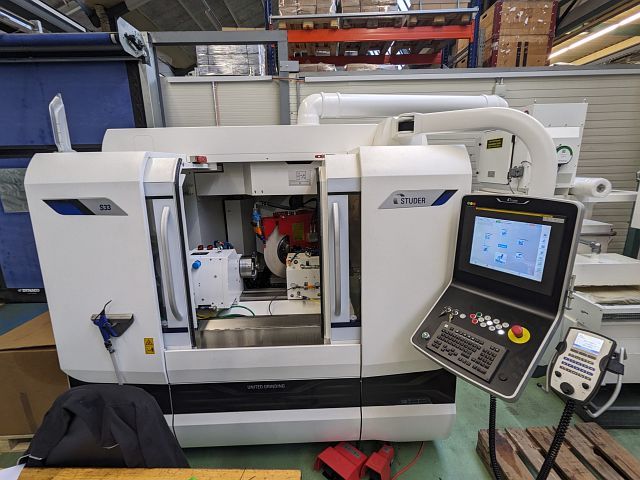

STUDER S 33
Categories
Cylindrical Grinder - External
Object
43980
Brand
STUDER
Model
S 33
YoM
2022
Controls
FANUC 0I-TFP
Object
43980
| Working Range Cylindrical Grinding | ||
|---|---|---|
| swing diameter (max): | 350 | mm |
| workpiece weight between centers (max): | 80 | kg |
| Working Range External Grinding | ||
|---|---|---|
| grinding diameter (max): | 350 | mm |
| grinding length: | 500 | mm |
| Workpiece Spindlestock | ||
|---|---|---|
| spindle revolutions (max): | 1500 | /min |
| drive power: | 3 | kW |
| spindle bore diameter: | 30 | mm |
| tool fixture: MK 5 | ||
| c-axis: yes | ||
| - positioning/indexing: | 0.5 | ° |
| tailstock | ||
|---|---|---|
| distance betw. centers (max): | 400 | mm |
| sleeve stroke: | 60 | mm |
| taper: MK 4 | ||
| Spindlestock Grinding Spindle | ||
|---|---|---|
| X-axis travel: | 370 | mm |
| Z-axis travel: | 500 | mm |
| tilting range (B-direction) min: | 60 | ° |
| drive power: | 9 | kW |
| Grinding Tool | ||
|---|---|---|
| diameter (max): | 500 | mm |
| borehole: diameter: | 203.2 | mm |
| width: | 63 | mm |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| total weight approx.: | 8500 | kg |
| ONLY 1700 operating hours! Travel X1: 370mm Infeed X1: 0.001-15'000m/min Resolution X1: 0.00001mm Travel Z1: 500 mm Infeed X1: 0.001-20'000m/min Resolution X1: 0.00001mm incl. measuring control - Longitudinal position and circumferential position |
| ONLY 1700 operating hours! Travel X1: 370mm Infeed X1: 0.001-15'000m/min Resolution X1: 0.00001mm Travel Z1: 500 mm Infeed X1: 0.001-20'000m/min Resolution X1: 0.00001mm incl. measuring control - Longitudinal position and circumferential position |
