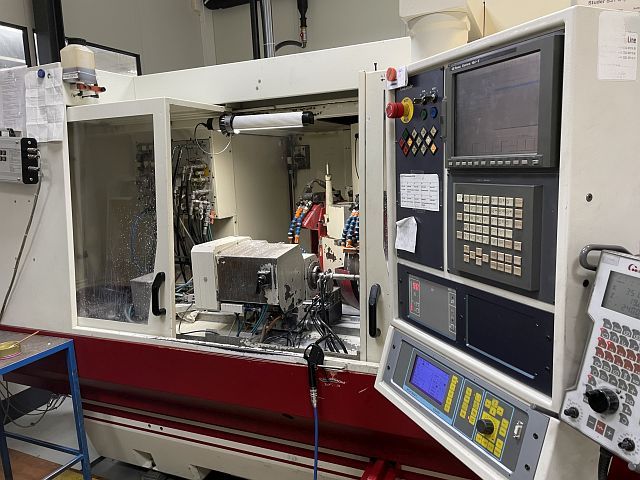

STUDER S 31
Categories
Cylindrical Grinder - Universal
Object
51467
Brand
STUDER
Model
S 31
YoM
2000
Controls
GE FANUC 16IT
Object
51467
| Working Range Cylindrical Grinding | ||
|---|---|---|
| swing diameter (max): | 340 | mm |
| workpiece weight between centers (max): | 80 | kg |
| Working Range External Grinding | ||
|---|---|---|
| grinding diameter (max): | 340 | mm |
| grinding length: | 650 | mm |
| Workpiece Spindlestock | ||
|---|---|---|
| c-axis: yes | ||
| tailstock | ||
|---|---|---|
| distance betw. centers (max): | 650 | mm |
| Spindlestock Grinding Spindle | ||
|---|---|---|
| X-axis travel: | 370 | mm |
| Z-axis travel: | 800 | mm |
| tilting range (B-direction) min: | -30 | ° |
| rotating range B-axis up to: | 225 | ° |
| spindle revolutions (min): | 1 | /min |
| spindle revolutions (max): | 1500 | /min |
| Grinding Tool | ||
|---|---|---|
| type of grinding tool: wheel | ||
| diameter (max): | 500 | mm |
| borehole: diameter: | 203 | mm |
| width: | 63 | mm |
| Electrical specifications | ||
|---|---|---|
| mains power supply: | 20 | kVA |
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 5000 | mm |
| total weight approx.: | 9500 | kg |
| attachments (grinding) | ||
|---|---|---|
| internal grinding spindle: yes | ||
| Equipment: 2 external grinding spindles 1 internal grinding spindle - C-axis for curve or polygon grinding - Dressers: 1x fixed diamond on the tool holder, 1x dressing spindle on the tool holder, 1 swivel dresser - Studer Quickset, - Movomatic ES400 connection for measuring unit, (without measuring probe) - 1 tailstock, - 1 swivel dresser, - The machine can be converted to a jaw chuck - No water treatment, as it is installed on a central system |
