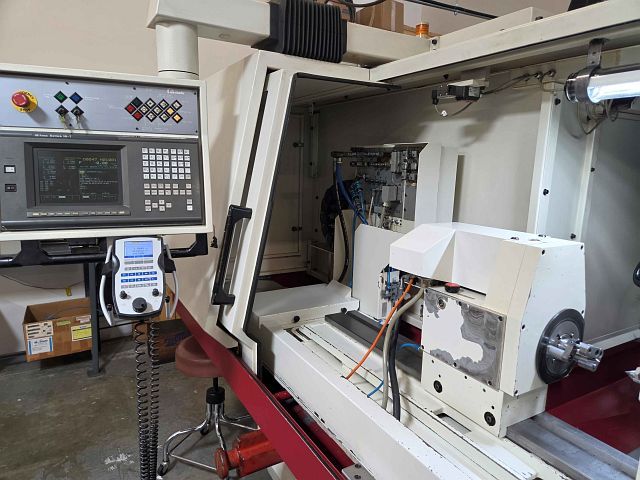

STUDER
Categories
Cylindrical Grinder - Universal
Object
57142
Brand
STUDER
YoM
1998
Controls
FANUC 16 T
Object
57142
| Working Range External Grinding | ||
|---|---|---|
| grinding diameter (max): | 350 | mm |
| grinding length: | 1000 | mm |
| tailstock | ||
|---|---|---|
| distance betw. centers (max): | 1000 | mm |
| sleeve stroke: | 30 | mm |
| sleeve diameter: | 50 | mm |
| taper: MK 3 | ||
| Grinding Tool | ||
|---|---|---|
| type of grinding tool: wheel | ||
| diameter (max): | 400 | mm |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 3700 | mm |
| space requirements -front/back-: | 1500 | mm |
| total height: | 2800 | mm |
| total weight approx.: | 5500 | kg |
| Features: - 2 external grinding spindles (Ø 400 mm) - B-axis - QuickSet in-process measurement - Machine hours: 24,833 |
