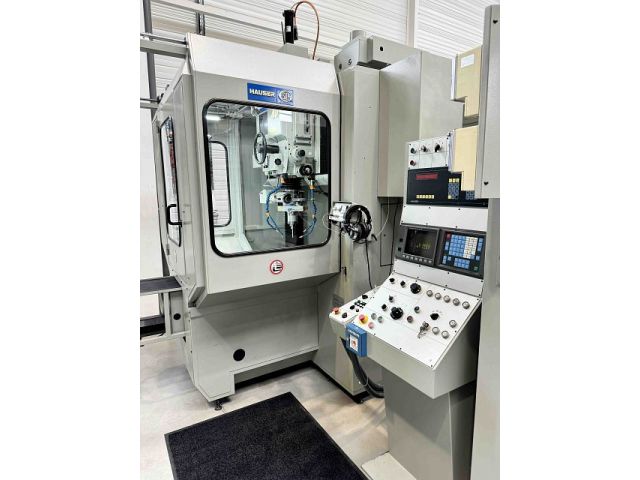

HAUSER S40-400
Categories
Jig Grinder
Object
57474
Brand
HAUSER
Model
S40-400
YoM
1990
Object
57474
| Working Range -cubic- | ||
|---|---|---|
| X-axis travel: | 650 | mm |
| Y-axis travel: | 450 | mm |
| Z-axis travel: | 130 | mm |
| Table | ||
|---|---|---|
| table surface (left-right): | 770 | mm |
| table surface (front-back): | 630 | mm |
| workpiece load (max): | 500 | kg |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| total weight approx.: | 4550 | kg |
| -work area protection -exhaust system with electrostatic air filter -fire protection system (to be assessed by a qualified body) -automatic paper tape filtration unit 1x grinding motor 22 S, speed 4500 - 22500 [rpm], for EX23 collets - part number: 181561 1x 45 S grinding motor, speed 9000 - 4500 [rpm], for EX19 collets - reference: 144017 1x 80 S grinding motor, speed 40000 - 80000 [rpm], for F6 collets - reference: 144021 1x grinding motor for slot grinding (motor + belt are included) - reference: 144022 3x grinding tools for slot grinder 1x set of belts for slot grinding motor 1x intermediate plate for alignment of grinding motors - reference: 192940 1x infinitely adjustable cantilever plate with mounted grinding motor for grinding up to Ø360 [mm] 1x adjustable plate, for tilting grinding motors and turbines (up to 16°) - reference: Various tools Complete documentatio |
