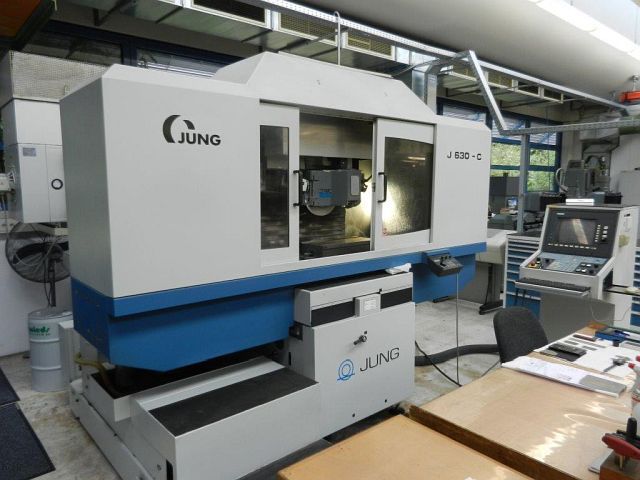

JUNG J 630 C
Categories
Surface Grinder, horizontal
Object
40106
Brand
JUNG
Model
J 630 C
YoM
1998
Controls
SIEMENS
Object
40106
| Working Range Surface Grinding | ||
|---|---|---|
| grinding length: | 600 | mm |
| grinding width: | 250 | mm |
| table (surface grinding) | ||
|---|---|---|
| table surface (left-right): | 600 | mm |
| table surface (front-back): | 250 | mm |
| workpiece load (max): | 130 | kg |
| magnetic table: yes | ||
| magnetic table | ||
|---|---|---|
| length: | 500 | mm |
| width: | 250 | mm |
| Spindlestock Grinding Spindle | ||
|---|---|---|
| spindle revolutions (min): | 80 | /min |
| spindle revolutions (max): | 4200 | /min |
| drive power: | 10 | kW |
| Grinding Tool | ||
|---|---|---|
| type of grinding tool: wheel | ||
| diameter (min): | 250 | mm |
| borehole: diameter: | 50.7 | mm |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 3000 | mm |
| space requirements -front/back-: | 2700 | mm |
| total height: | 2500 | mm |
| total weight approx.: | 3200 | kg |
| attachments (grinding) | ||
|---|---|---|
| coolant unit: yes | ||
