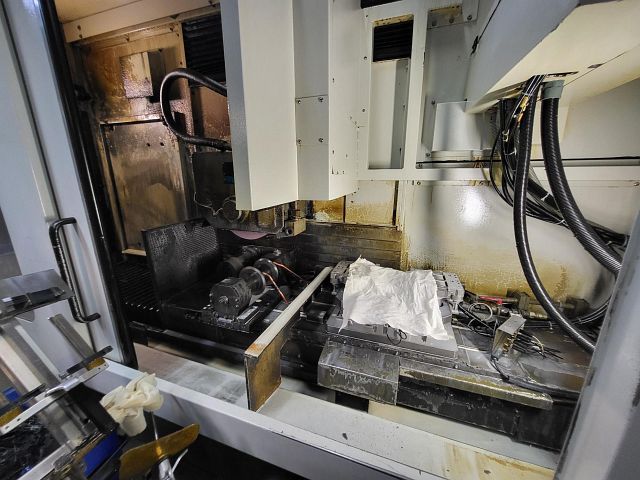

JUNG C 740 CNC
Categories
Surface and Profile Grinder
Object
43699
Brand
JUNG
Model
C 740 CNC
YoM
2003
Controls
SIEMENS SINUMERIK
Object
43699
| Working Range Surface Grinding | ||
|---|---|---|
| grinding length: | 880 | mm |
| grinding width: | 510 | mm |
| table (surface grinding) | ||
|---|---|---|
| table surface (left-right): | 800 | mm |
| table surface (front-back): | 430 | mm |
| workpiece load (max): | 800 | kg |
| magnetic table | ||
|---|---|---|
| length: | 800 | mm |
| width: | 400 | mm |
| Spindlestock Grinding Spindle | ||
|---|---|---|
| spindle revolutions (min): | 1500 | /min |
| spindle revolutions (max): | 3500 | /min |
| Grinding Tool | ||
|---|---|---|
| type of grinding tool: wheel | ||
| diameter (min): | 210 | mm |
| diameter (max): | 400 | mm |
| borehole: diameter: | 127 | mm |
| width: | 100 | mm |
| Electrical specifications | ||
|---|---|---|
| mains power supply: | 30 | kVA |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 3150 | mm |
| space requirements -front/back-: | 2350 | mm |
| total weight approx.: | 6800 | kg |
