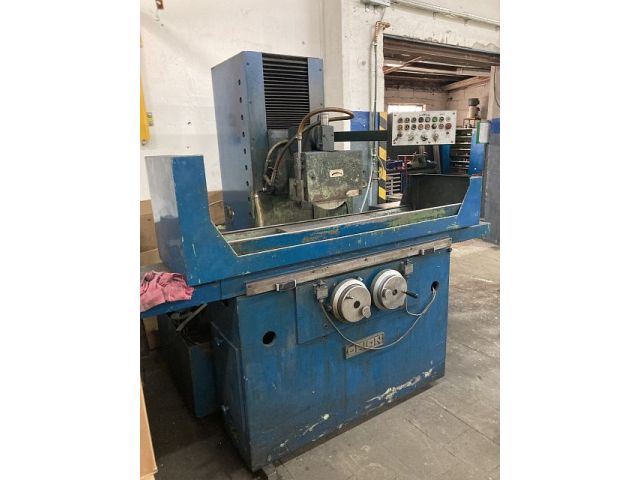

MENGELE ORION 306 30/H
Categories
Surface Grinder, horizontal
Object
57138
Brand
MENGELE
Model
ORION 306 30/H
YoM
1975
Object
57138
| Working Range Surface Grinding | ||
|---|---|---|
| grinding length: | 600 | mm |
| grinding width: | 350 | mm |
| distance of axis of horizontal spindle - clamping surface (max.): | 640 | mm |
| table (surface grinding) | ||
|---|---|---|
| table surface (left-right): | 1320 | mm |
| table surface (front-back): | 300 | mm |
| magnetic table | ||
|---|---|---|
| length: | 600 | mm |
| width: | 300 | mm |
| Spindlestock Grinding Spindle | ||
|---|---|---|
| spindle revolutions (min): | 1440 | /min |
| spindle revolutions (max): | 2880 | /min |
| continuous speed variation: yes | ||
| drive power: | 7.5 | kW |
| Grinding Tool | ||
|---|---|---|
| type of grinding tool: wheel | ||
| diameter (min): | 300 | mm |
| diameter (max): | 450 | mm |
| width: | 80 | mm |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 2200 | mm |
| space requirements -front/back-: | 1900 | mm |
| total height: | 2000 | mm |
| total weight approx.: | 3450 | kg |
| attachments (grinding) | ||
|---|---|---|
| coolant unit: yes | ||
