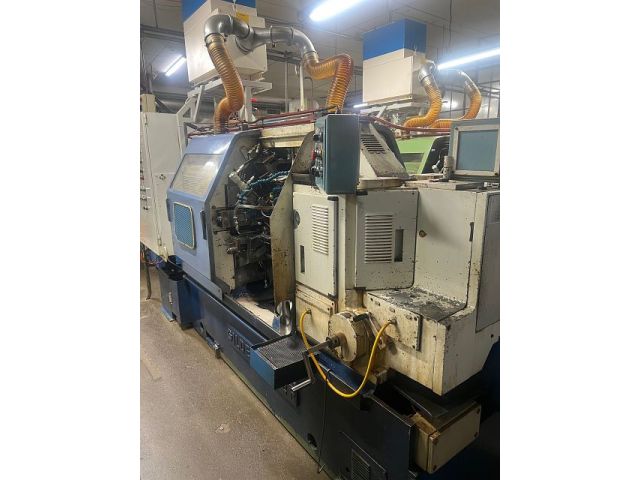

GILDEMEISTER AS 20
Categories
Multi-Spindle Automatic Lathe - conventional
Object
54669
Brand
GILDEMEISTER
Model
AS 20
YoM
1973
Object
54669
| basic functions | ||
|---|---|---|
| number of spindles: | 6 | |
| Working Range Turning | ||
|---|---|---|
| turning diameter (max): | 20 | mm |
| bar diameter (max): | 20 | mm |
| worpiece length max.: | 100 | mm |
| main spindle | ||
|---|---|---|
| spindle revolutions (min): | 214 | /min |
| spindle revolutions (max): | 5168 | /min |
| number of gears: | 81 | |
| drive power: | 11 | kW |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 6000 | mm |
| space requirements -front/back-: | 2000 | mm |
| total weight approx.: | 5600 | kg |
| Technical Data - Max. diameter of hexagonal rods: 17 mm - Max. diameter of square rods: 14 mm - Max. stroke of sidecars: 42 mm - Forward and backward movement of sidecars: +/- 8 mm - Max. stroke of axial carriages: 50 mm - Forward and backward offset of axial ca |
| Technical Data - Max. diameter of hexagonal rods: 17 mm - Max. diameter of square rods: 14 mm - Max. stroke of sidecars: 42 mm - Forward and backward movement of sidecars: +/- 8 mm - Max. stroke of axial carriages: 50 mm - Forward and backward offset of axial ca |
