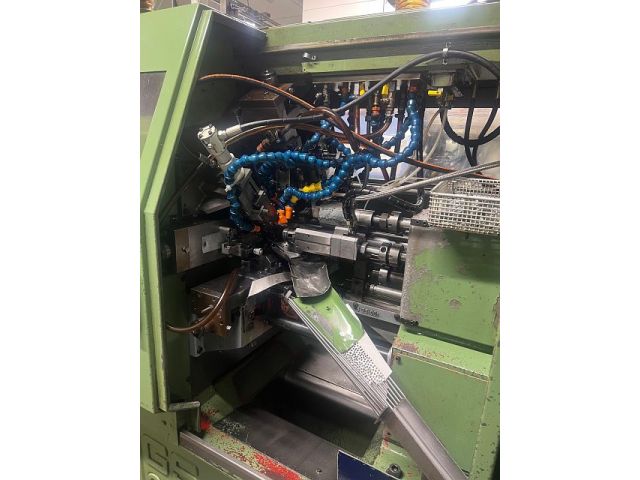

GILDEMEISTER GS 20
Categories
Multi-Spindle Automatic Lathe - conventional
Object
54670
Brand
GILDEMEISTER
Model
GS 20
YoM
1988
Object
54670
| basic functions | ||
|---|---|---|
| number of spindles: | 6 | |
| Working Range Turning | ||
|---|---|---|
| swing diameter (max): | 20 | mm |
| turning diameter (max): | 20 | mm |
| bar diameter (max): | 20 | mm |
| main spindle | ||
|---|---|---|
| spindle revolutions (max): | 5168 | /min |
| Electrical specifications | ||
|---|---|---|
| total power consumption: | 11 | kW |
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 5680 | mm |
| space requirements -front/back-: | 1400 | mm |
| total weight approx.: | 5000 | kg |
| tech. details: - max diameter hexagonal bars 17 mm - max diameter square bars 14 mm - max advancement bars 100 mm - max stroke axial carriages 50 mm - Offset of axial carriages forwards and backwards +/- 8 mm - Max stroke tool holder spindles 86 mm - Offset of tool spindles forward and backward +/- 11 mm - max stroke of the guide block 50 mm - Axial offset of the guide block 160 mm |
