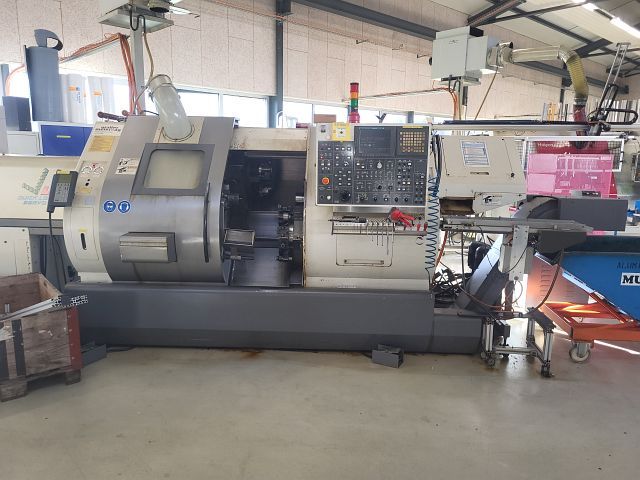

NAKAMURA WT 150 MMY
Categories
Turning and Milling Center
Object
49535
Brand
NAKAMURA
Model
WT 150 MMY
YoM
2002
Controls
FANUC
Object
49535
| basic functions | ||
|---|---|---|
| number of spindles: | 2 | |
| number of turrets: | 2 | |
| live positions: yes | ||
| number of c-axes: | 2 | |
| number of y-axes: | 1 | |
| number of b-axes: | 1 | |
| Working Range Turning | ||
|---|---|---|
| bar diameter (max): | 50 | mm |
| main spindle | ||
|---|---|---|
| spindle revolutions (max): | 5000 | /min |
| drive power: | 11 | kW |
| spindle bore diameter: | 50 | mm |
| c-axis: yes | ||
| counter spindle | ||
|---|---|---|
| spindle revolutions (max): | 5000 | /min |
| drive power: | 7.5 | kW |
| c-axis: yes | ||
| Z-axis travel: | 465 | mm |
| X/Z slide | ||
|---|---|---|
| tool fixture: Turret | ||
| number of tool positions (total): | 24 | |
| number of live positions: | 24 | |
| - rotation speeds (max): | 6000 | /min |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 4500 | mm |
| space requirements -front/back-: | 2200 | mm |
| total height: | 1900 | mm |
| total weight approx.: | 5500 | kg |
| attachments (turning) | ||
|---|---|---|
| workpiece unloading system: yes | ||
| workpiece measuring device: yes | ||
| chip conveyor: yes | ||
| hydraulic system: yes | ||
