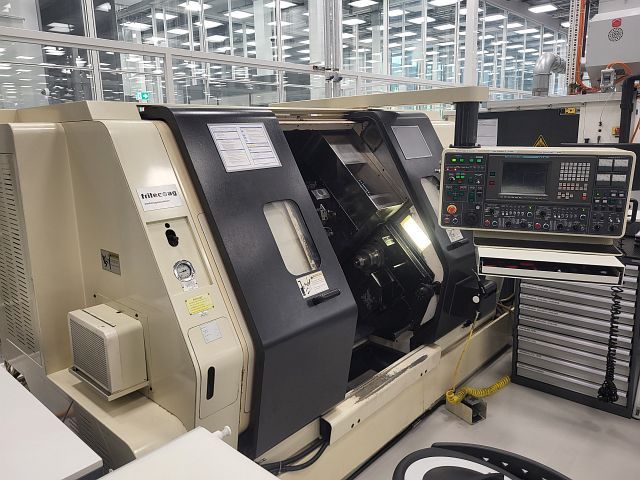

NAKAMURA TW 10
Categories
Turning and Milling Center
Object
51572
Brand
NAKAMURA
Model
TW 10
YoM
1994
Controls
FANUC
Object
51572
| basic functions | ||
|---|---|---|
| design principle: inclined bed | ||
| number of spindles: | 2 | |
| number of x/z slides: | 2 | |
| number of turrets: | 2 | |
| live positions: yes | ||
| number of c-axes: | 2 | |
| number of y-axes: | 1 | |
| Working Range Turning | ||
|---|---|---|
| turning diameter (max): | 210 | mm |
| bar diameter (max): | 42 | mm |
| main spindle | ||
|---|---|---|
| spindle revolutions (max): | 5500 | /min |
| c-axis: yes | ||
| counter spindle | ||
|---|---|---|
| spindle revolutions (max): | 5500 | /min |
| c-axis: yes | ||
| Dimensions / weights | ||
|---|---|---|
| total weight approx.: | 4800 | kg |
| attachments (turning) | ||
|---|---|---|
| chip conveyor: yes | ||
| hydraulic system: yes | ||
