DMG CTX BETA 1250 TC
Categories
Turning and Milling Center
Object
51665
Brand
DMG
Model
CTX BETA 1250 TC
YoM
2019
Controls
SIEMENS 840 D SL
Object
51665
| basic functions | ||
|---|---|---|
| number of spindles: | 2 | |
| Working Range Turning | ||
|---|---|---|
| turning diameter (max): | 500 | mm |
| bar diameter (max): | 104 | mm |
| worpiece length max.: | 1200 | mm |
| main spindle | ||
|---|---|---|
| spindle revolutions (max): | 4000 | /min |
| drive power: | 28 | kW |
| spindle torque: | 800 | Nm |
| counter spindle | ||
|---|---|---|
| spindle revolutions (max): | 6000 | /min |
| drive power: | 14.5 | kW |
| X/Z slide | ||
|---|---|---|
| Z-axis travel: | 1300 | mm |
| X-axis travel: | 490 | mm |
| Y-axis travel: | 250 | mm |
| rotating range B-axis up to: | 120 | ° |
| - rotation speeds (max): | 12000 | /min |
| - drive power: | 22 | kW |
| Tool magazine | ||
|---|---|---|
| number of positions: | 80 | |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| attachments (turning) | ||
|---|---|---|
| chip conveyor: yes | ||
| coolant unit: yes | ||
| band filtration unit: yes | ||
| through spindle coolant attachment: yes | ||
| hydraulic system: yes | ||
| European CE standards: yes | ||

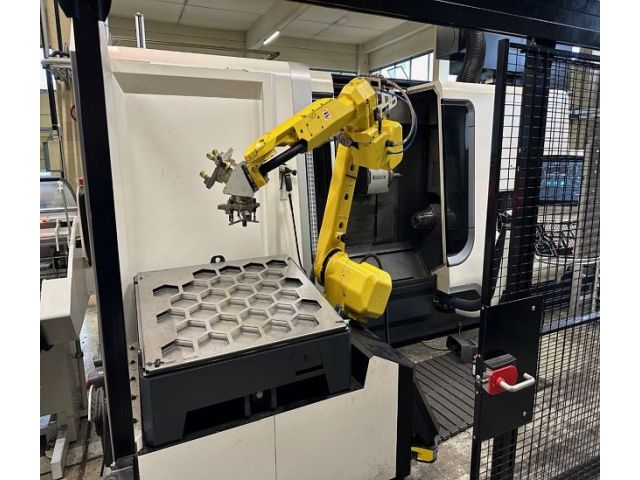

| Equipment and information Interface for robots Glass scales in X-, Y- and Z-axis MP 1.0 - Machine Protection Control Tool measuring probe Workpiece measuring probe, BLUM TC60 Technology cycle for applying an alternating speed for vibration-critical stresses Chuck flushing device on the main spindle Chuck flushing device on the counter spindle Differential pressure clamping for the counter spindle Robot automation Robo2Go robot cell Max. workpiece weight: 20 kg Bar feeder unloading + remnant Operating times Switch-on time: approx. 6,800 hours Machining time: approx. 3,700 hours Translated with DeepL.com (free version) |
