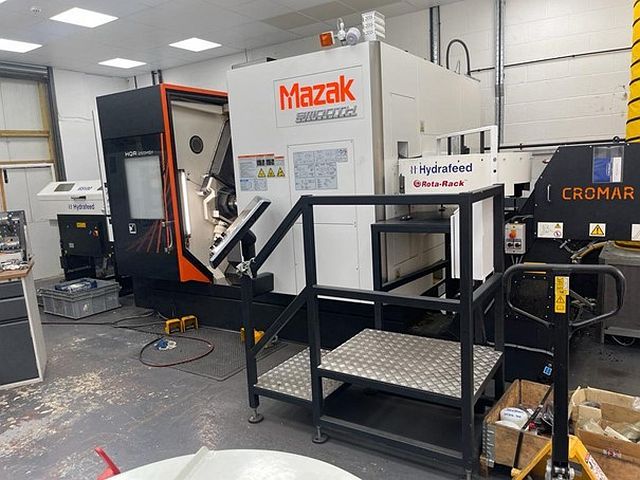

MAZAK HQR-250 MSY
Categories
Turning and Milling Center
Object
51681
Brand
MAZAK
Model
HQR-250 MSY
YoM
2018
Controls
MAZAK SMOOTH G
Object
51681
| basic functions | ||
|---|---|---|
| number of spindles: | 2 | |
| number of turrets: | 2 | |
| live positions: yes | ||
| Working Range Turning | ||
|---|---|---|
| swing diameter (max): | 370 | mm |
| turning diameter (max): | 344 | mm |
| bar diameter (max): | 80 | mm |
| main spindle | ||
|---|---|---|
| spindle revolutions (max): | 4000 | /min |
| drive power: | 26 | kW |
| spindle positioning: | 0.0001 | ° |
| c-axis: yes | ||
| counter spindle | ||
|---|---|---|
| spindle revolutions (max): | 5000 | /min |
| drive power: | 22 | kW |
| spindle positioning: | 0.0001 | ° |
| c-axis: yes | ||
| X/Z slide | ||
|---|---|---|
| Z-axis travel: | 760 | mm |
| X-axis travel: | 207 | mm |
| Y-axis travel: | 100 | mm |
| number of tool positions (total): | 12 | |
| number of live positions: | 12 | |
| - rotation speeds (max): | 6000 | /min |
| - drive power: | 11 | kW |
| X/Z slide | ||
|---|---|---|
| Z-axis travel: | 815 | mm |
| X-axis travel: | 141 | mm |
| Y-axis travel: | 70 | mm |
| number of tool positions (total): | 12 | |
| number of live positions: | 12 | |
| - rotation speeds (max): | 6000 | /min |
| attachments (turning) | ||
|---|---|---|
| bar magazine: yes | ||
| - bar diameter (max): | 80 | mm |
| workpiece unloading system: yes | ||
| chip conveyor: yes | ||
| coolant unit: yes | ||
| coolant through turret: yes | ||
| through spindle coolant attachment: yes | ||
| aspiration unit: yes | ||
| hydraulic system: yes | ||
| European CE standards: yes | ||
| Accessories - 1 set of tool holders - 1 pc. collet chuck Hainbuch 80 mm Axfix for main spindle - 1 pc. 3-jaw chuck Kitagawa BB210 for main spindle 1 pc. 1 pc. collet chuck Hainbuch 80 mm Axfix for counter spindle - Collet chuck Hainbuch 80 mm Axfix for counter spindle |
