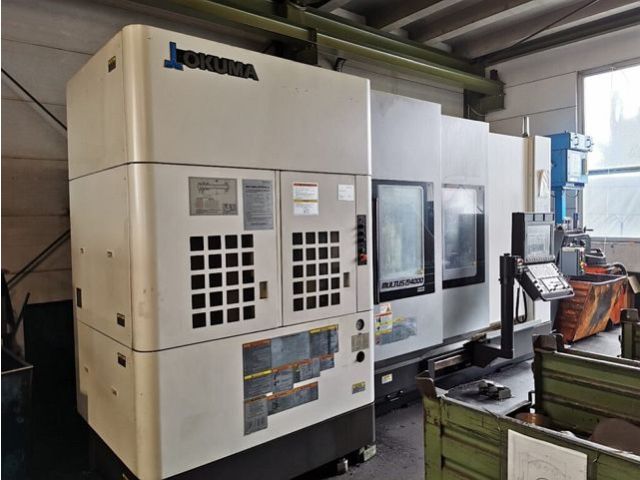

OKUMA MULTUS U4000
Categories
Turning and Milling Center
Object
51703
Brand
OKUMA
Model
MULTUS U4000
YoM
2016
Controls
OKUMA OSP P300S
Object
51703
| basic functions | ||
|---|---|---|
| number of spindles: | 2 | |
| number of turrets: | 1 | |
| live positions: yes | ||
| number of c-axes: | 2 | |
| number of b-axes: | 1 | |
| spindle / head | ||
|---|---|---|
| - positioning/indexing: | 0.001 | ° |
| spindle revolutions (max): | 12000 | /min |
| tool fixture: HSK A63 | ||
| drive power: | 22 | kW |
| Working Range Turning | ||
|---|---|---|
| turning diameter (max): | 650 | mm |
| bar diameter (max): | 95 | mm |
| main spindle | ||
|---|---|---|
| spindle revolutions (max): | 3000 | /min |
| drive power: | 32 | kW |
| spindle torque: | 955 | Nm |
| spindle diameter: | 112 | mm |
| spindle bore diameter: | 95 | mm |
| counter spindle | ||
|---|---|---|
| spindle revolutions (max): | 4000 | /min |
| drive power: | 26 | kW |
| spindle torque: | 420 | Nm |
| X/Z slide | ||
|---|---|---|
| Z-axis travel: | 1600 | mm |
| X-axis travel: | 695 | mm |
| Y-axis travel: | 300 | mm |
| rotating range B-axis up to: | 210 | ° |
| number of tool positions (total): | 12 | |
| Tool magazine | ||
|---|---|---|
| number of positions: | 80 | |
| tool diameter max.: | 90 | mm |
| - with free neighbour positions: | 130 | mm |
| tool length max.: | 400 | mm |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 4480 | mm |
| total height: | 3030 | mm |
| total weight approx.: | 18000 | kg |
| attachments (turning) | ||
|---|---|---|
| chip conveyor: yes | ||
| hydraulic system: yes | ||
| European CE standards: yes | ||
