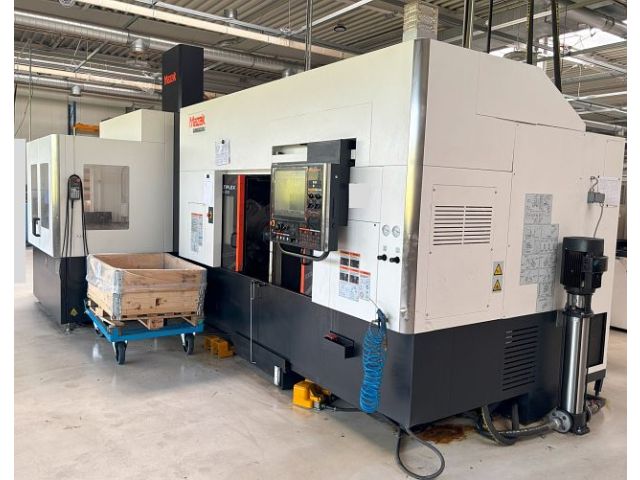

MAZAK MULTIPLEX W-200
Categories
Turning and Milling Center
Object
52762
Brand
MAZAK
Model
MULTIPLEX W-200
YoM
2017
Controls
MAZAK SMOOTH G
Object
52762
| basic functions | ||
|---|---|---|
| number of spindles: | 2 | |
| number of turrets: | 2 | |
| live positions: yes | ||
| number of c-axes: | 2 | |
| Working Range Turning | ||
|---|---|---|
| turning diameter (max): | 320 | mm |
| main spindle | ||
|---|---|---|
| spindle revolutions (max): | 5000 | /min |
| drive power: | 22 | kW |
| spindle positioning: | 0.0001 | ° |
| c-axis: yes | ||
| counter spindle | ||
|---|---|---|
| spindle revolutions (max): | 5000 | /min |
| drive power: | 22 | kW |
| spindle positioning: | 0.001 | ° |
| c-axis: yes | ||
| X/Z slide | ||
|---|---|---|
| Z-axis travel: | 490 | mm |
| X-axis travel: | 275 | mm |
| number of tool positions (total): | 12 | |
| - rotation speeds (max): | 5000 | /min |
| - drive power: | 5.5 | kW |
| X/Z slide | ||
|---|---|---|
| Z-axis travel: | 525 | mm |
| X-axis travel: | 275 | mm |
| number of live positions: | 12 | |
| - rotation speeds (max): | 5000 | /min |
| - drive power: | 5.5 | kW |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 5590 | mm |
| space requirements -front/back-: | 2170 | mm |
| total height: | 3160 | mm |
| attachments (turning) | ||
|---|---|---|
| workpiece loading unit: yes | ||
| hydraulic system: yes | ||
| European CE standards: yes | ||
| Options: -Gantry loader GL-100F -Automatic tooleye right and left -2x25 bar high pressure pump -Overload monitoring -Cylinder interpolation -1 Set of mould holders |
| Options: -Gantry loader GL-100F -Automatic tooleye right and left -2x25 bar high pressure pump -Overload monitoring -Cylinder interpolation -1 Set of mould holders |
