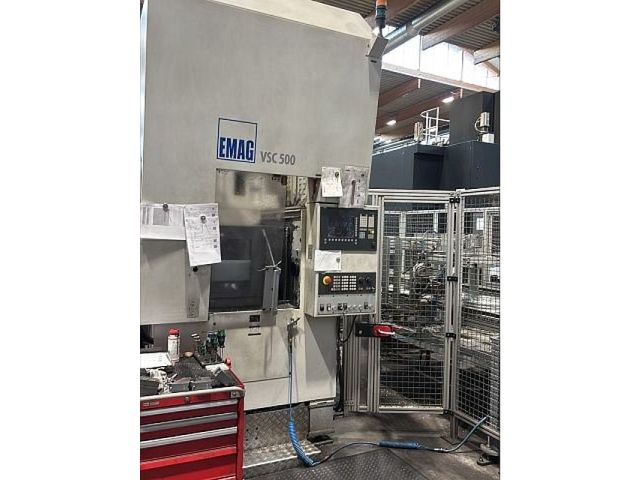

EMAG VSC 500
Categories
Vertical lathe CNC (pick up spindle)
Object
53921
Brand
EMAG
Model
VSC 500
YoM
2011
Controls
SIEMENS 840 D
Object
53921
| basic functions | ||
|---|---|---|
| design principle: vertical spindle | ||
| number of spindles: | 1 | |
| number of x/z slides: | 1 | |
| number of turrets: | 1 | |
| live positions: yes | ||
| number of c-axes: | 1 | |
| Working Range Turning | ||
|---|---|---|
| turning diameter (max): | 530 | mm |
| worpiece length max.: | 200 | mm |
| main spindle | ||
|---|---|---|
| spindle revolutions (max): | 4000 | /min |
| c-axis: yes | ||
| X/Z slide | ||
|---|---|---|
| tool fixture: Turret | ||
| number of tool positions (total): | 12 | |
| - rotation speeds (max): | 8000 | /min |
| Electrical specifications | ||
|---|---|---|
| total power consumption: | 71 | kW |
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 9500 | mm |
| space requirements -front/back-: | 5000 | mm |
| total height: | 4200 | mm |
| total weight approx.: | 13500 | kg |
| - Axes: X / Z / C spindle / A turret / including life tool - The machine features a VDI 50 turret with 12 positions. - Feed roller conveyor with pickup station - 20 bar internal cooling |
| - Axes: X / Z / C spindle / A turret / including life tool - The machine features a VDI 50 turret with 12 positions. - Feed roller conveyor with pickup station - 20 bar internal cooling |
