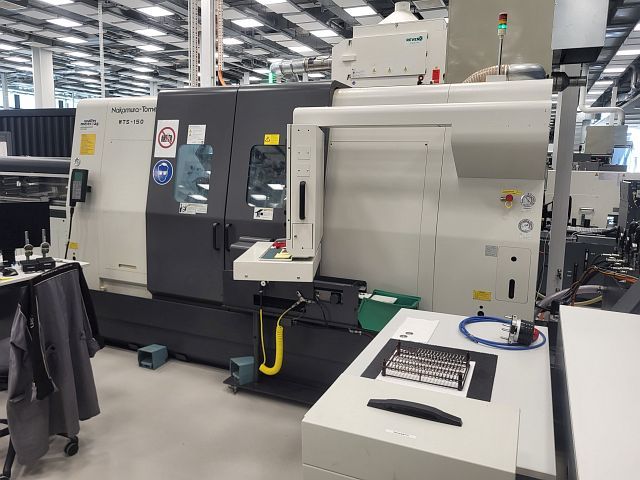

NAKAMURA WTS-150
Categories
Turning and Milling Center
Object
56584
Brand
NAKAMURA
Model
WTS-150
YoM
2004
Controls
FANUC 16 ITB
Object
56584
| basic functions | ||
|---|---|---|
| design principle: inclined bed | ||
| number of spindles: | 2 | |
| number of turrets: | 3 | |
| live positions: yes | ||
| number of c-axes: | 2 | |
| number of y-axes: | 2 | |
| Working Range Turning | ||
|---|---|---|
| bar diameter (max): | 50 | mm |
| main spindle | ||
|---|---|---|
| spindle revolutions (max): | 4000 | /min |
| drive power S1 100%: | 18.5 | kW |
| spindle bore diameter: | 50 | mm |
| c-axis: yes | ||
| counter spindle | ||
|---|---|---|
| spindle revolutions (max): | 5000 | /min |
| drive power S1 100%: | 11 | kW |
| c-axis: yes | ||
| X/Z slide | ||
|---|---|---|
| tool fixture: Turret | ||
| - rotation speeds (max): | 6000 | /min |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| total weight approx.: | 10000 | kg |
| attachments (turning) | ||
|---|---|---|
| bar feeder: yes | ||
| bar magazine: yes | ||
| chip conveyor: yes | ||
| coolant unit: yes | ||
| aspiration unit: yes | ||
| hydraulic system: yes | ||
| European CE standards: yes | ||
