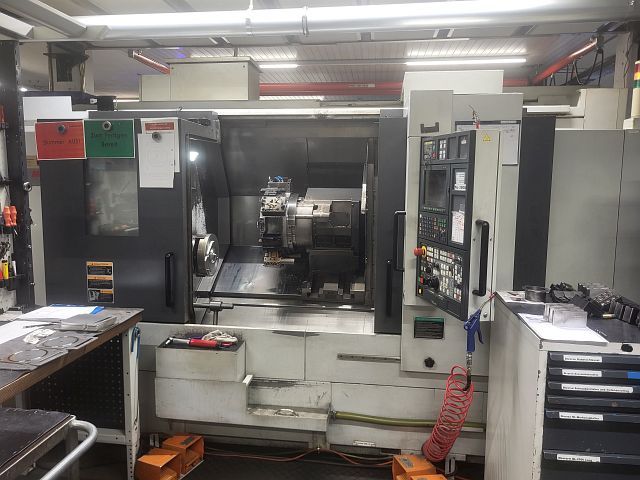

MORI SEIKI NL 2500 SMC/1250
Categories
Turning and Milling Center
Object
56831
Brand
MORI SEIKI
Model
NL 2500 SMC/1250
YoM
2004
Controls
MITSUBISHI M720BM
Object
56831
| basic functions | ||
|---|---|---|
| number of spindles: | 2 | |
| number of turrets: | 1 | |
| live positions: yes | ||
| number of c-axes: | 2 | |
| Working Range Turning | ||
|---|---|---|
| swing diameter (max): | 700 | mm |
| turning diameter (max): | 350 | mm |
| main spindle | ||
|---|---|---|
| spindle revolutions (max): | 4000 | /min |
| spindle bore diameter: | 90 | mm |
| c-axis: yes | ||
| X/Z slide | ||
|---|---|---|
| - rotation speeds (max): | 6000 | /min |
| Tool magazine | ||
|---|---|---|
| number of positions: | 24 | |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| total weight approx.: | 7500 | kg |
| attachments (turning) | ||
|---|---|---|
| chip conveyor: yes | ||
| coolant unit: yes | ||
| hydraulic system: yes | ||
| European CE standards: yes | ||
| Machine in a good condition The spindle guides need to be replaced. Machine equipment (1500.- CHF (below)): - 1x double face and longitudinal turning tool holder - 3x face and longitudinal turning tool holders - 1x boring bar holder - 1 driven tool each (radial/axial) |
