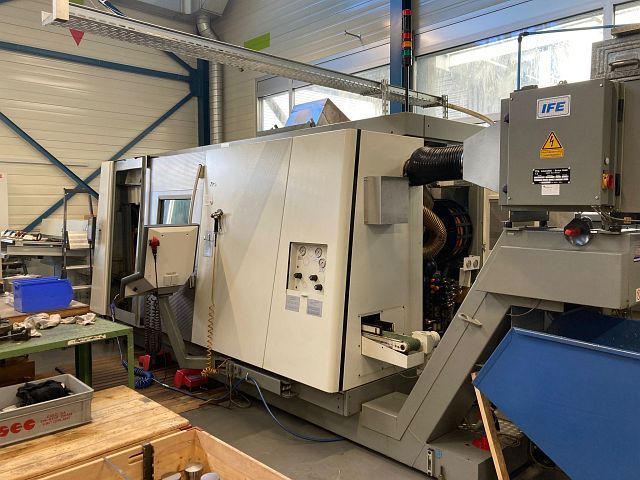

DMG GMX 200
Categories
Turning and Milling Center
Object
56871
Brand
DMG
Model
GMX 200
YoM
2004
Object
56871
| basic functions | ||
|---|---|---|
| number of spindles: | 2 | |
| live positions: yes | ||
| number of c-axes: | 2 | |
| number of y-axes: | 1 | |
| number of b-axes: | 1 | |
| Working Range Turning | ||
|---|---|---|
| swing diameter (max): | 560 | mm |
| turning diameter (max): | 560 | mm |
| bar diameter (max): | 65 | mm |
| main spindle | ||
|---|---|---|
| spindle revolutions (max): | 5000 | /min |
| spindle bore diameter: | 65 | mm |
| c-axis: yes | ||
| counter spindle | ||
|---|---|---|
| spindle revolutions (max): | 5000 | /min |
| c-axis: yes | ||
| X/Z slide | ||
|---|---|---|
| Z-axis travel: | 1070 | mm |
| X-axis travel: | 485 | mm |
| Y-axis travel: | 160 | mm |
| rotating range B-axis up to: | 240 | ° |
| tool fixture: Milling Spindle | ||
| number of tool positions (total): | 80 | |
| - rotation speeds (max): | 12000 | /min |
| Tool magazine | ||
|---|---|---|
| number of positions: | 80 | |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 6000 | mm |
| space requirements -front/back-: | 2610 | mm |
| total height: | 2500 | mm |
| total weight approx.: | 14500 | kg |
| Features: - Includes LNS bar feeder - Without tool holder (Freshly overhauled main spindle) |
