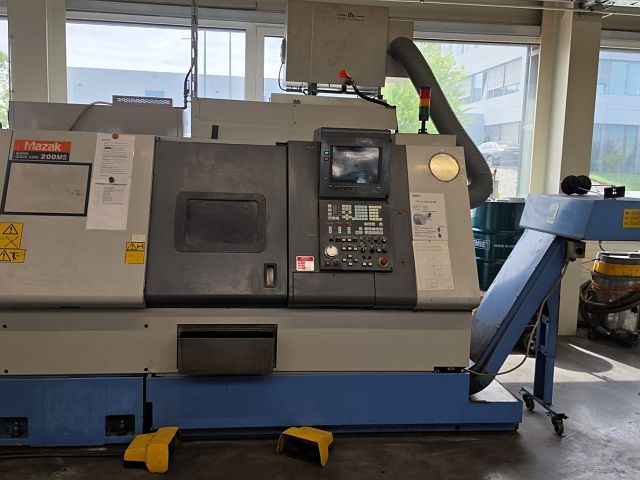

MAZAK SQT 200M
Categories
Turning and Milling Center
Object
56908
Brand
MAZAK
Model
SQT 200M
YoM
2001
Controls
MAZATROL
Object
56908
| basic functions | ||
|---|---|---|
| number of spindles: | 1 | |
| number of turrets: | 1 | |
| live positions: yes | ||
| number of c-axes: | 1 | |
| Working Range Turning | ||
|---|---|---|
| swing diameter (max): | 300 | mm |
| turning diameter (max): | 275 | mm |
| bar diameter (max): | 51 | mm |
| worpiece length max.: | 520 | mm |
| main spindle | ||
|---|---|---|
| spindle revolutions (min): | 35 | /min |
| spindle revolutions (max): | 5000 | /min |
| spindle bore diameter: | 61 | mm |
| c-axis: yes | ||
| X/Z slide | ||
|---|---|---|
| Z-axis travel: | 575 | mm |
| X-axis travel: | 190 | mm |
| tool fixture: Turret | ||
| number of tool positions (total): | 12 | |
| - rotation speeds (max): | 4500 | /min |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| total weight approx.: | 4850 | kg |
| attachments (turning) | ||
|---|---|---|
| chip conveyor: yes | ||
| hydraulic system: yes | ||
