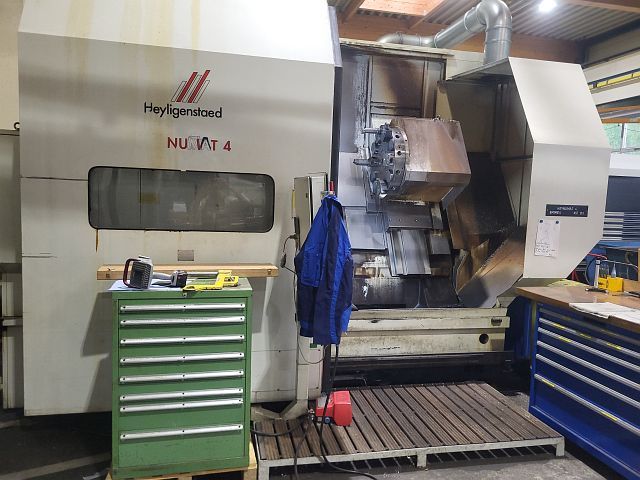

HEYLIGENSTAEDT HEYNUMAT 4FX1000
Categories
Turning and Milling Center
Object
56977
Brand
HEYLIGENSTAEDT
Model
HEYNUMAT 4FX1000
YoM
2001
Controls
HEIDENHAIN CNC PILOT 3190
Object
56977
| basic functions | ||
|---|---|---|
| design principle: inclined bed | ||
| number of spindles: | 1 | |
| number of turrets: | 1 | |
| live positions: yes | ||
| number of c-axes: | 1 | |
| Working Range Turning | ||
|---|---|---|
| swing diameter (max): | 1200 | mm |
| turning diameter (max): | 950 | mm |
| main spindle | ||
|---|---|---|
| spindle revolutions (max): | 1600 | /min |
| spindle bore diameter: | 160 | mm |
| c-axis: yes | ||
| X/Z slide | ||
|---|---|---|
| traverse velocity Z (min): | 0.5 | mm/min |
| traverse velocity Z (max): | 5000 | mm/min |
| rapid traverse Z: | 10000 | mm/min |
| tool fixture: Turret | ||
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -front/back-: | 3700 | mm |
| total height: | 3200 | mm |
| Equipment: - 3-jaw chuck D630 - Exhaust unit - Various tool holders |
