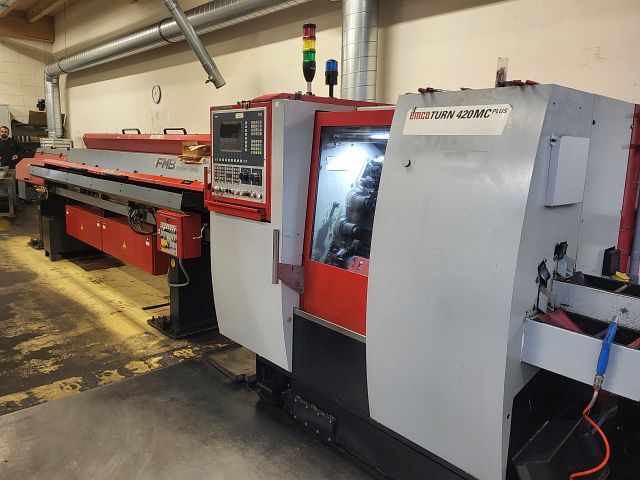

EMCO EMCOTURN 420 MC
Categories
Turning and Milling Center
Object
56978
Brand
EMCO
Model
EMCOTURN 420 MC
YoM
2004
Controls
SIEMENS
Object
56978
| basic functions | ||
|---|---|---|
| number of spindles: | 4 | |
| number of turrets: | 2 | |
| live positions: yes | ||
| number of c-axes: | 4 | |
| Working Range Turning | ||
|---|---|---|
| turning diameter (max): | 100 | mm |
| bar diameter (max): | 20 | mm |
| main spindle | ||
|---|---|---|
| spindle revolutions (max): | 5000 | /min |
| counter spindle | ||
|---|---|---|
| spindle revolutions (max): | 5000 | /min |
| Tool magazine | ||
|---|---|---|
| number of positions: | 48 | |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 9600 | mm |
| space requirements -front/back-: | 1500 | mm |
| total height: | 2200 | mm |
| total weight approx.: | 2600 | kg |
| attachments (turning) | ||
|---|---|---|
| bar magazine: optional | ||
| - bar length (max): | 3000 | mm |
| chip conveyor: yes | ||
| coolant unit: yes | ||
| hydraulic system: yes | ||
| Features: - various tool holders - various collets in every millimeter increment - bar feeder (dual channel) |
