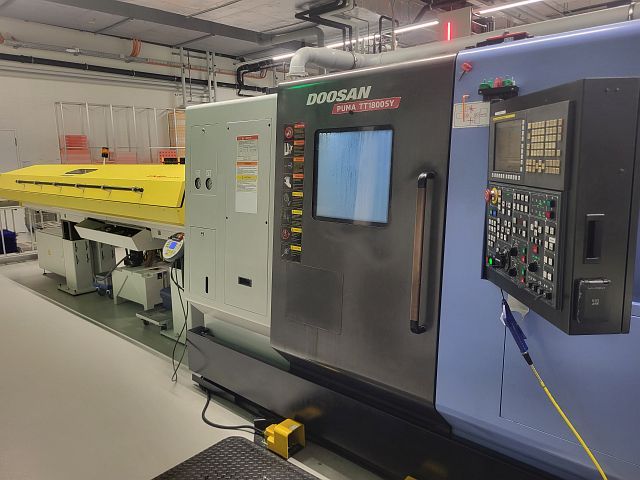

DOOSAN PUMA TT 1800 SY
Categories
Turning and Milling Center
Object
57152
Brand
DOOSAN
Model
PUMA TT 1800 SY
YoM
2012
Controls
FANUC 31I MODEL A
Object
57152
| basic functions | ||
|---|---|---|
| number of spindles: | 2 | |
| number of turrets: | 2 | |
| live positions: yes | ||
| number of c-axes: | 2 | |
| number of y-axes: | 1 | |
| Working Range Turning | ||
|---|---|---|
| turning diameter (max): | 230 | mm |
| worpiece length max.: | 700 | mm |
| main spindle | ||
|---|---|---|
| spindle revolutions (min): | 50 | /min |
| spindle revolutions (max): | 5000 | /min |
| c-axis: yes | ||
| counter spindle | ||
|---|---|---|
| spindle revolutions (min): | 50 | /min |
| spindle revolutions (max): | 6000 | /min |
| c-axis: yes | ||
| X/Z slide | ||
|---|---|---|
| tool fixture: Turret | ||
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 2800 | mm |
| space requirements -front/back-: | 1630 | mm |
| total height: | 2200 | mm |
| total weight approx.: | 9000 | kg |
| attachments (turning) | ||
|---|---|---|
| chip conveyor: yes | ||
| coolant unit: yes | ||
| band filtration unit: yes | ||
| coolant through turret: yes | ||
| through spindle coolant attachment: yes | ||
| hydraulic system: yes | ||
| European CE standards: yes | ||
| Features: - FMB turbo 8-80 bar feeder - Y-axis in the upper turret |
| Features: - FMB turbo 8-80 bar feeder - Y-axis in the upper turret |
