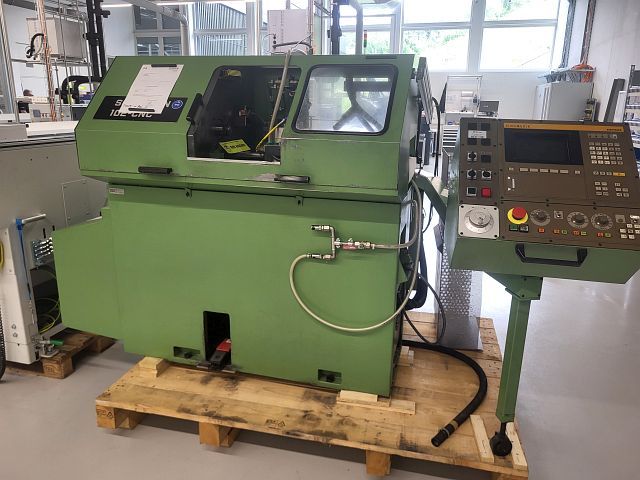

SCHAUBLIN 102 CNC
Categories
CNC lathe
Object
57174
Brand
SCHAUBLIN
Model
102 CNC
YoM
1990
Controls
SIEMENS
Object
57174
| basic functions | ||
|---|---|---|
| number of spindles: | 1 | |
| Working Range Turning | ||
|---|---|---|
| turning diameter (max): | 102 | mm |
| bar diameter (max): | 20 | mm |
| worpiece length max.: | 300 | mm |
| main spindle | ||
|---|---|---|
| spindle revolutions (min): | 5000 | /min |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 2100 | mm |
| space requirements -front/back-: | 1500 | mm |
| total height: | 1600 | mm |
| total weight approx.: | 1100 | kg |

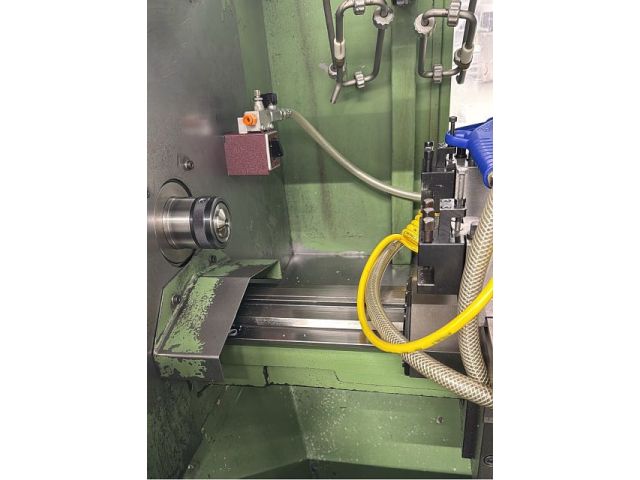

| Machine with a lot of equpments Machine with cross slide |
| Machine with a lot of equpments Machine with cross slide |
